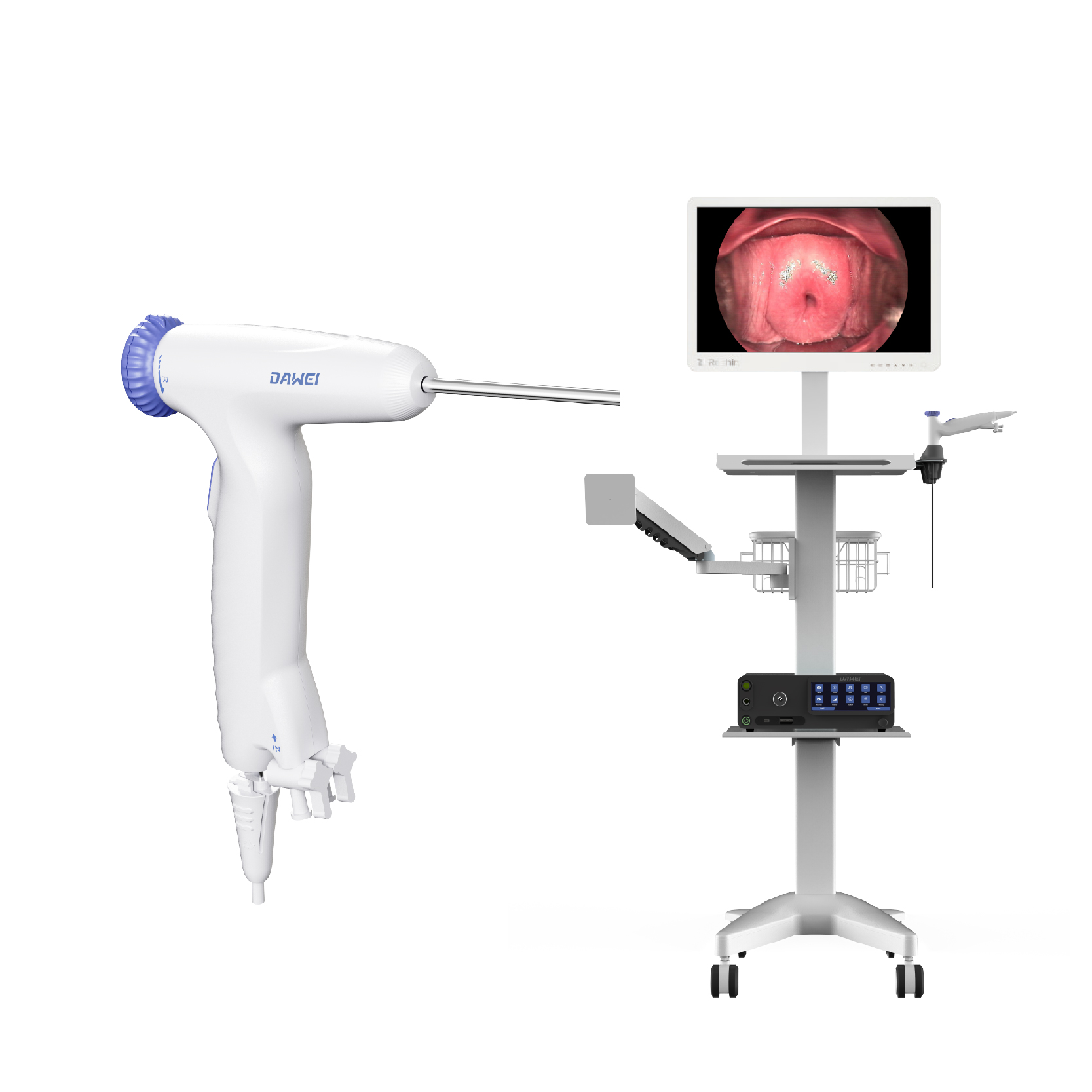

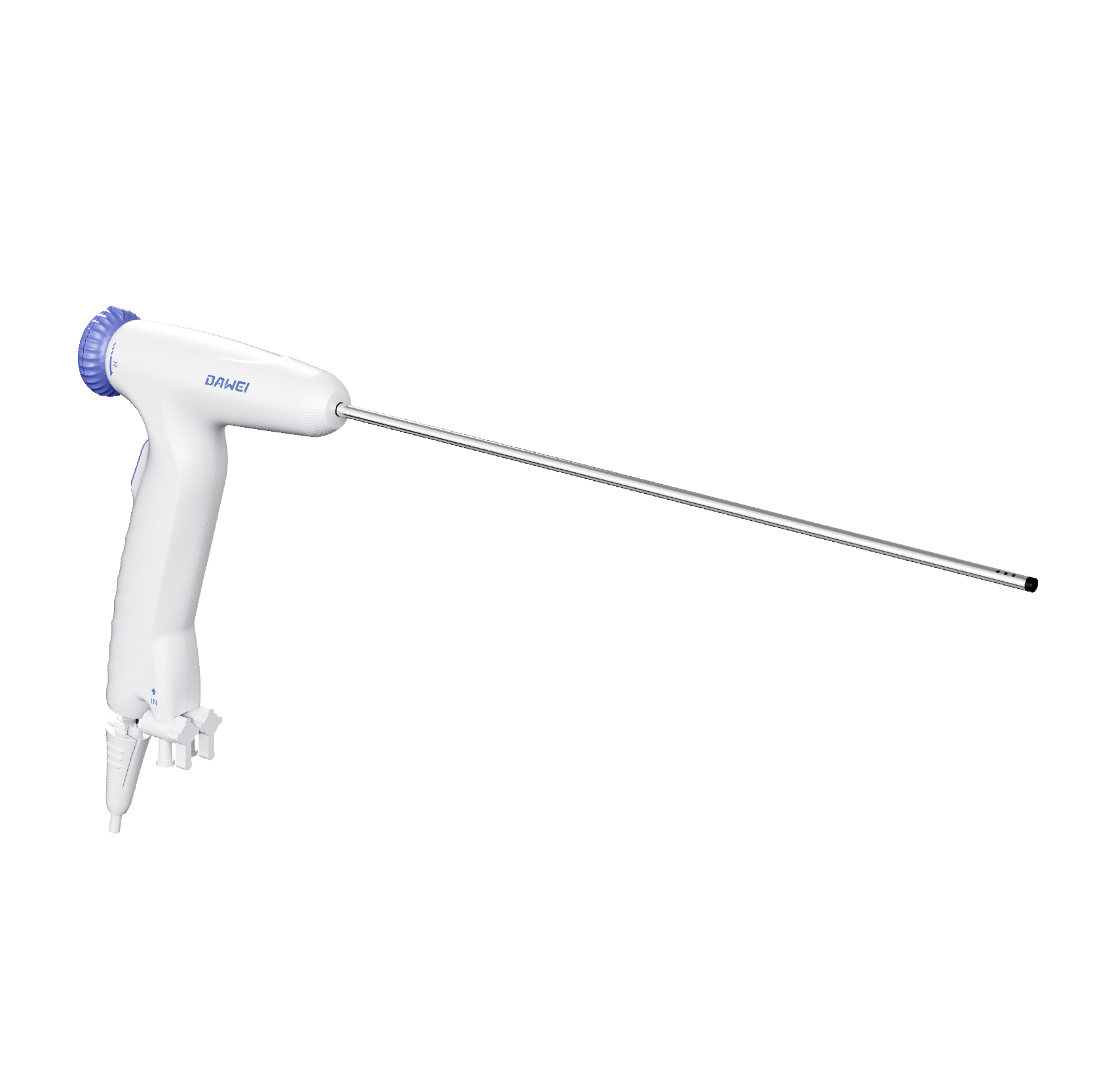

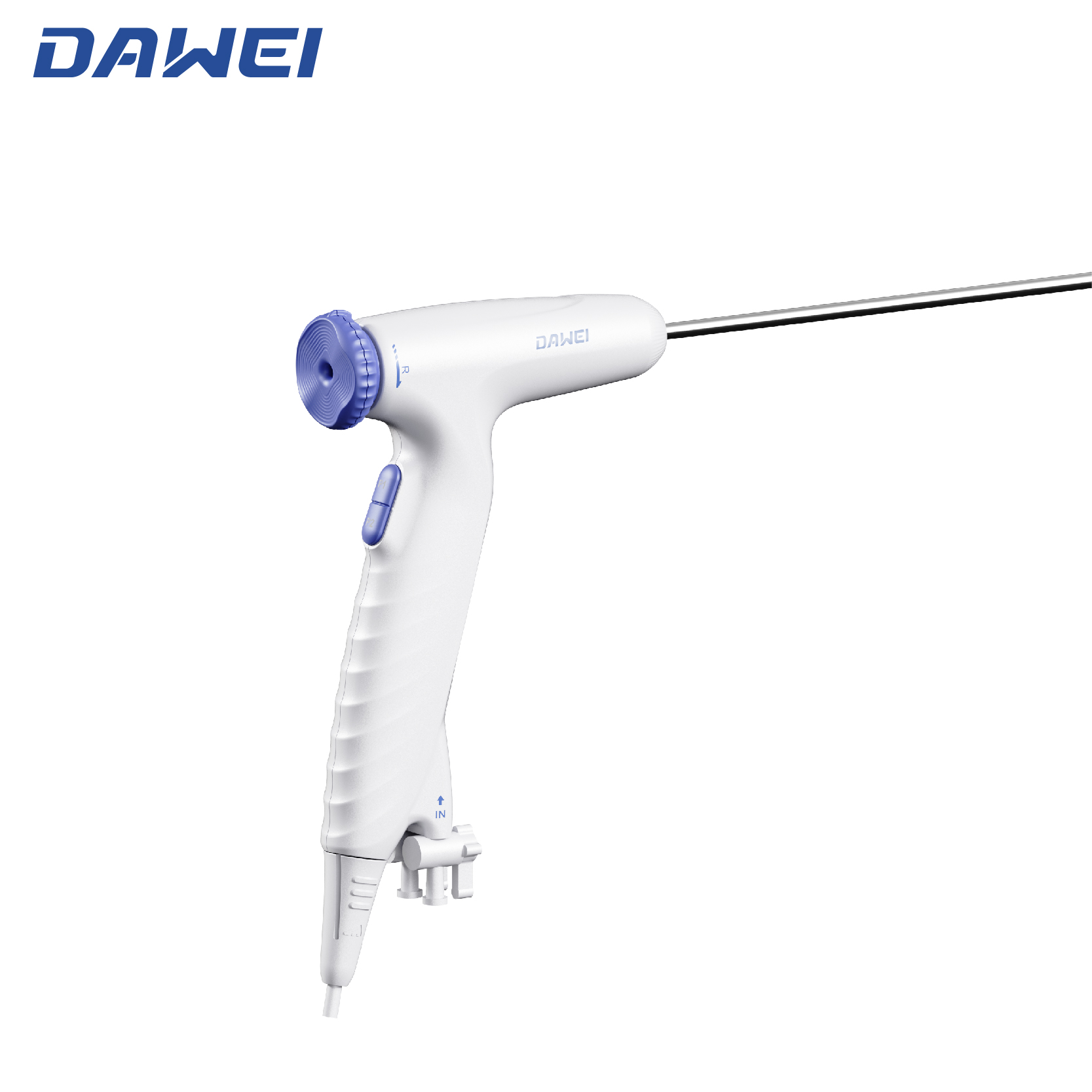

Dawei UT Series Disposable Electronic Hysteroscope

Model：
UT Series

The disposable diagnostic and operative electronic hysteroscope, designed with safety, minimally invasive techniques, and high efficiency as core principles, is purpose-built for precise intrauterine examinations and surgical procedures, balancing diagnostic accuracy with patient comfort.

库存： 0

Inquiry

Video

Disposable Electronic Hysteroscope for Gynecological Examination and Treatment

Discover the UT Series Disposable Hysteroscope from DAWEI Medical, designed for direct visualization of the cervical canal and uterine cavity during gynecological examination, diagnosis, and minimally invasive procedures. With high-definition imaging, a 140° field of view, a 5.0--5.2 mm outer diameter, and an integrated instrument channel, it supports efficient hysteroscopic procedures in outpatient and surgical settings.

Product Description

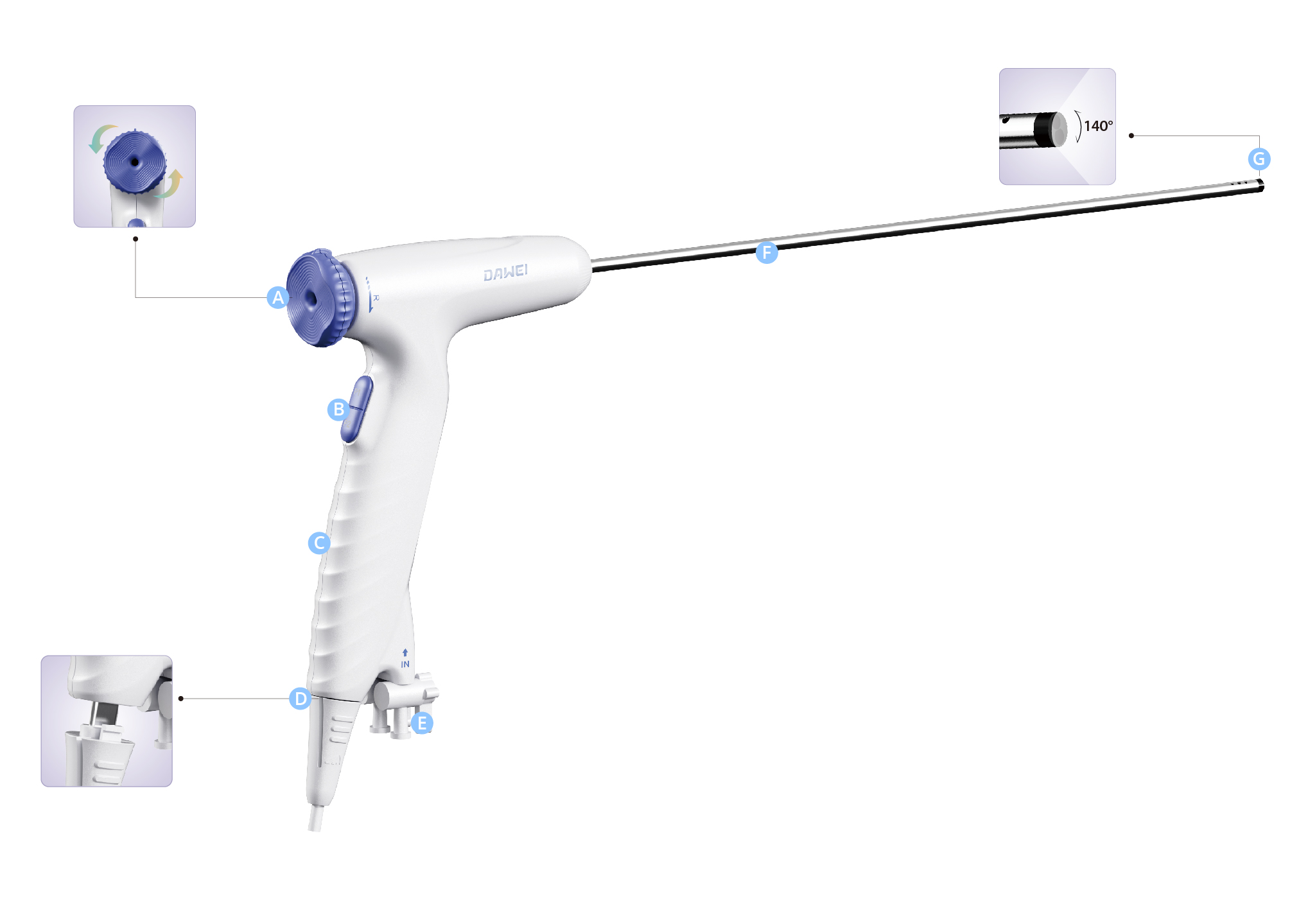

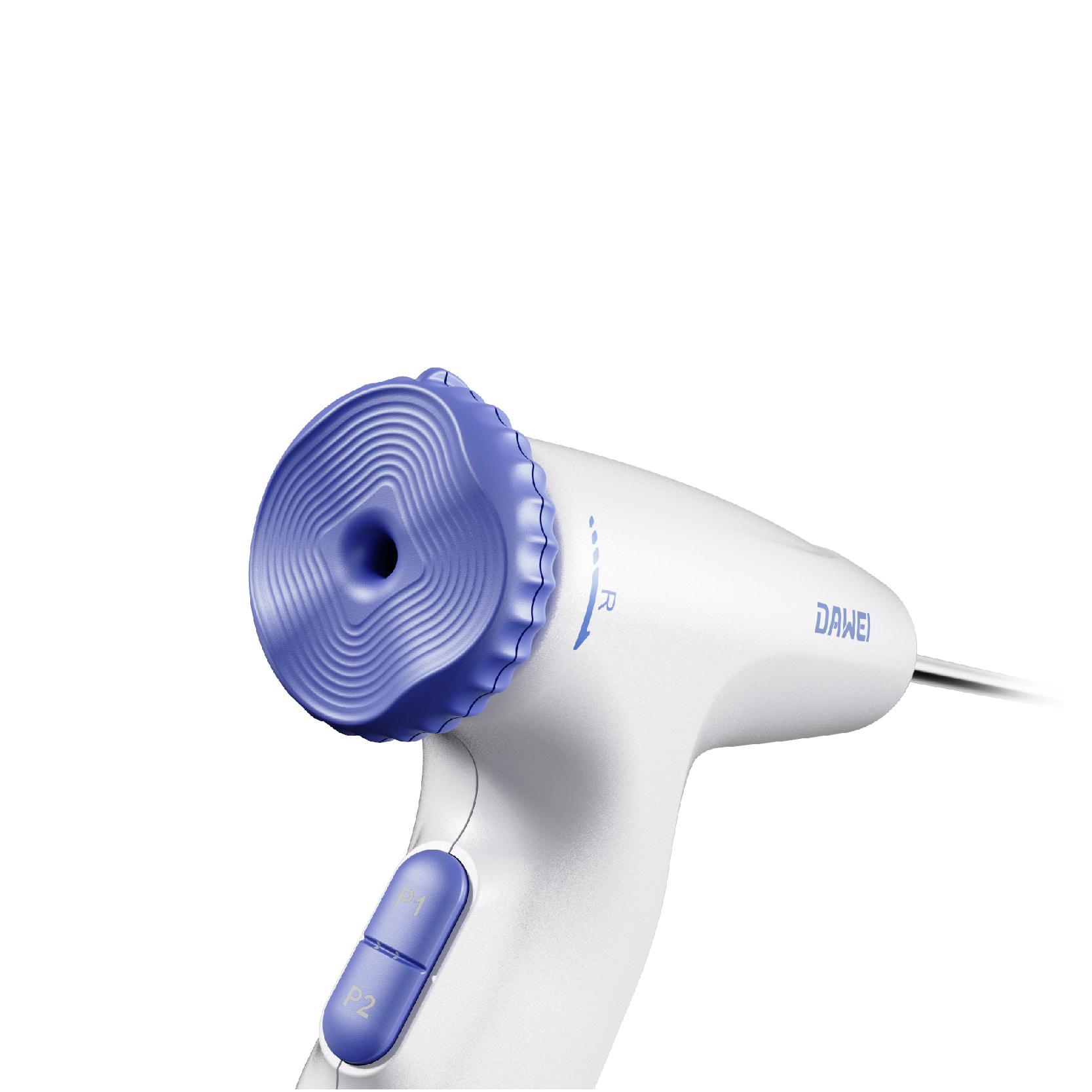

A. 175° Knob Rotation: for complete uterine visibility.

Instrument Channel: Tightly sealed without any leakage when using tools.

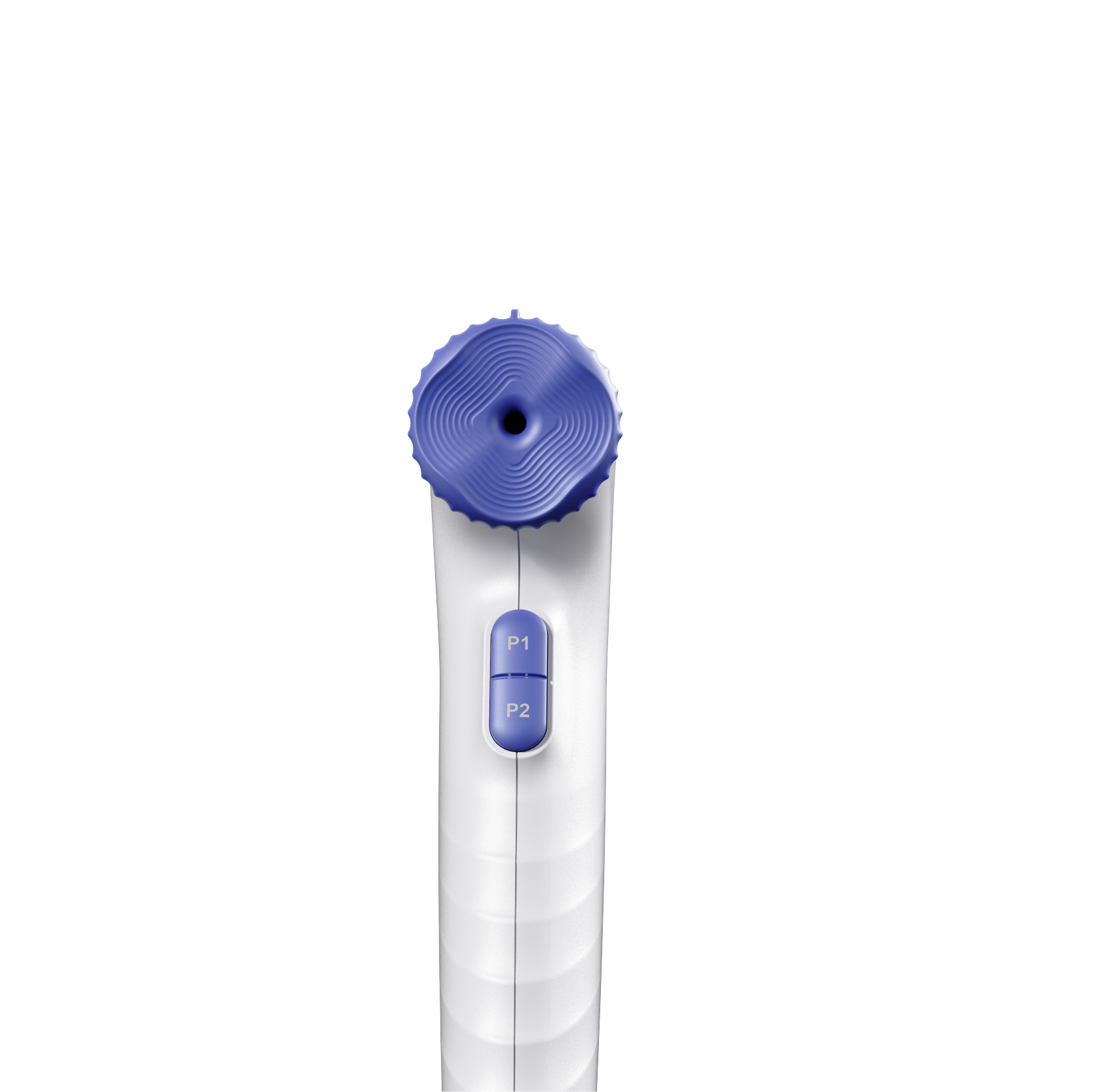

B. Dual Button Control for Efficient Operation: Dual control buttons allow quick access to image capture, video recording, and electronic zoom in /zoom out.

C. Ergonomic Handle Design: The ergonomic handle weighs approximately 110g, ensuring comfortable operation even during prolonged procedures.

D. USB Type-C Fast Connectivity: Enables rapid connection to the host system with a reusable and sterilizable cable assembly.

E. Separate Inlet and Outlet Water Channels: Designed for improved fluid management.

F. Outer Diameter: 5.0mm: No cervical dilation or anesthesia required

G. 140° Wide Field of View: High-definition imaging with a wide field of view.

Products Specification
Model	Outer Diameter	Working Length	Insertion Tube Outer Diameter	Working Channel Diameter	Field of View (FOV)	Depth of Field (DOF)	Direction of View	Effective Pixels
UT5030	5.0mm	300mm	5.0mm	2.0mm	140°	3-100mm	0°	1MP
UT5027	5.0mm	270mm	5.0mm	2.0mm	140°	3-100mm	0°	1MP
UT5024	5.0mm	240mm	5.0mm	2.0mm	140°	3-100mm	0°	1MP
UT5021	5.0mm	210mm	5.0mm	2.0mm	140°	3-100mm	0°	1MP
UT5230	5.2mm	300mm	5.2mm	2.2mm	140°	3-100mm	0°	1MP
UT5227	5.2mm	270mm	5.2mm	2.2mm	140°	3-100mm	0°	1MP
UT5224	5.2mm	240mm	5.2mm	2.2mm	140°	3-100mm	0°	1MP
UT5221	5.2mm	210mm	5.2mm	2.2mm	140°	3-100mm	0°	1MP

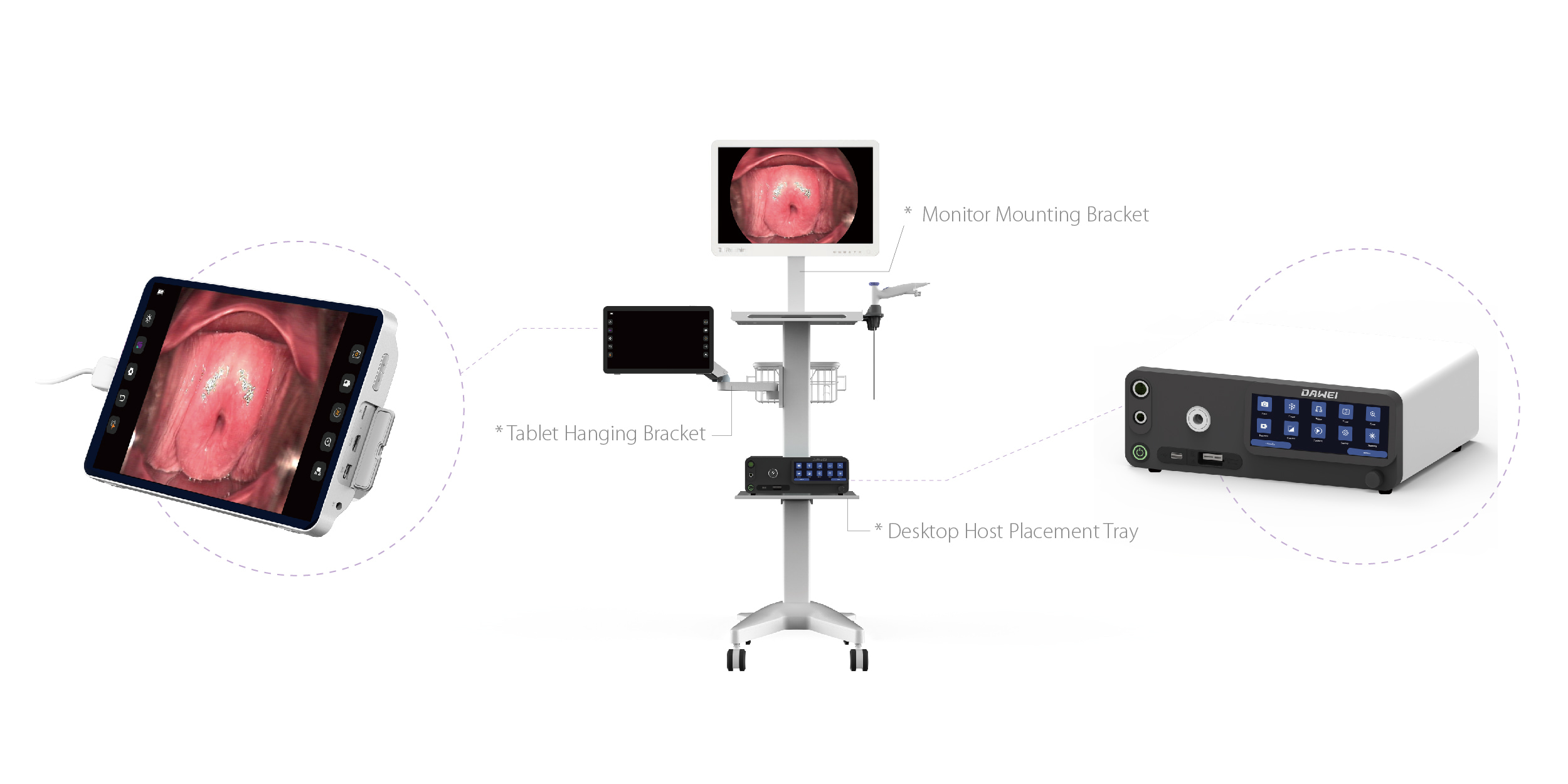

Endoscopic Image Processor

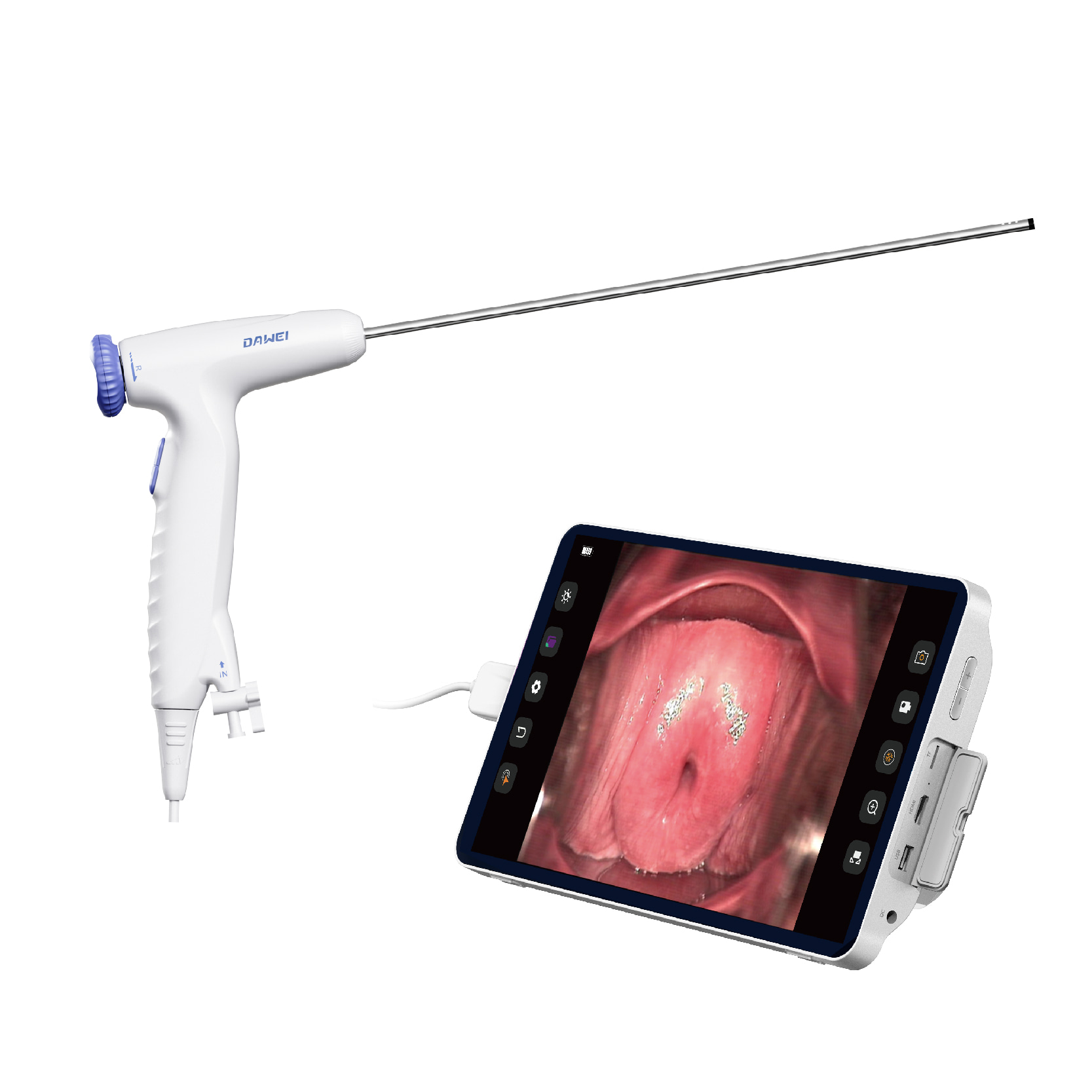

Parameter	Tablet (SC18)	Desktop (DT18)
Display	13.3-inch touch screen	6-inch touch screen
Brightness Adjustment	0-5 levels	0-5 levels
Video Output	HDMI	HDMI / DVI
Freeze Function	Supported (PIP Freeze)	supported
Playback	Supported	supported
White Balance	Supported	Handle ＆ main unit
Gain Control	1-4 levels	1-4 levels
Noise Reduction	0-10 levels	0-10 levels
Storage	USB ≤128GB	USB ≤128GB

Clinical Applications

Hysteroscopy is an important endoscopic technique in gynecology that provides direct visualization of the cervical canal and uterine cavity. It can be used to examine and diagnose uterine conditions, as well as for minimally invasive treatment and surgical procedures.

Examination & Diagnosis

Hysteroscopy enables direct visualization of the cervical canal and uterine cavity, supporting the assessment and diagnosis of various uterine conditions.

Abnormal uterine bleeding

Infertility evaluation

Further assessment of abnormal imaging findings

Preoperative evaluation and postoperative follow-up

Endometrial biopsy

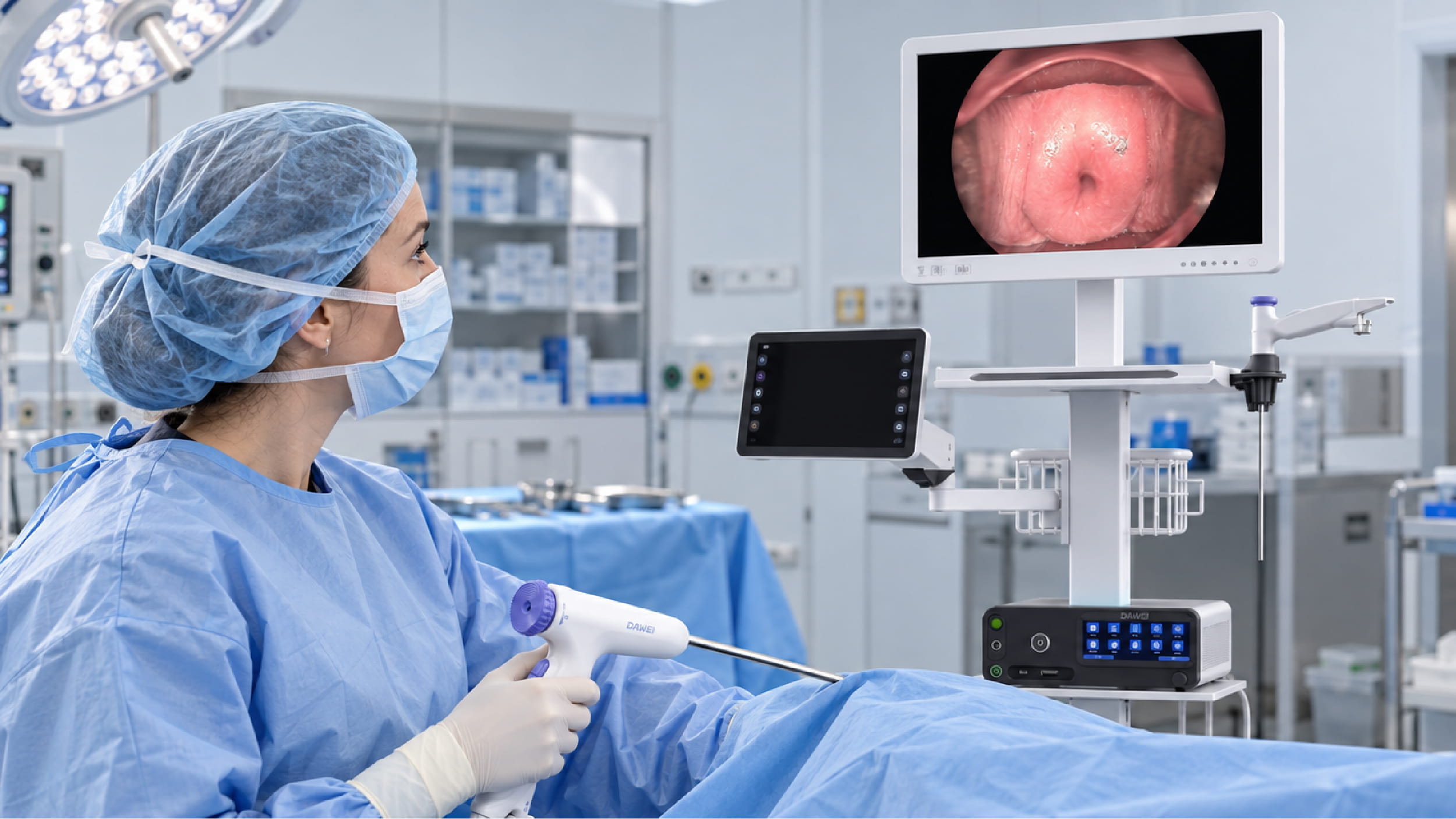

Minimally Invasive Treatment

For suitable conditions, hysteroscopy can be used for minimally invasive procedures, often in an outpatient or day-surgery setting.

Endometrial polyp removal

Removal of small submucosal fibroids

Treatment of mild intrauterine adhesions

Removal of retained products of conception

Hysteroscopic tissue sampling

Surgical Procedures

For more complex intrauterine conditions, hysteroscopy can provide direct visualization during surgical procedures.

Hysteroscopic treatment of severe intrauterine adhesions

Resection of larger submucosal fibroids

Correction of uterine anomalies, such as uterine septum

Extensive endometrial resection for severe heavy menstrual bleeding

Uterine cavity assessment and local treatment of selected early endometrial lesions
