Digital Radiography X-ray Equipment

Model：
RD-850RS/832RS

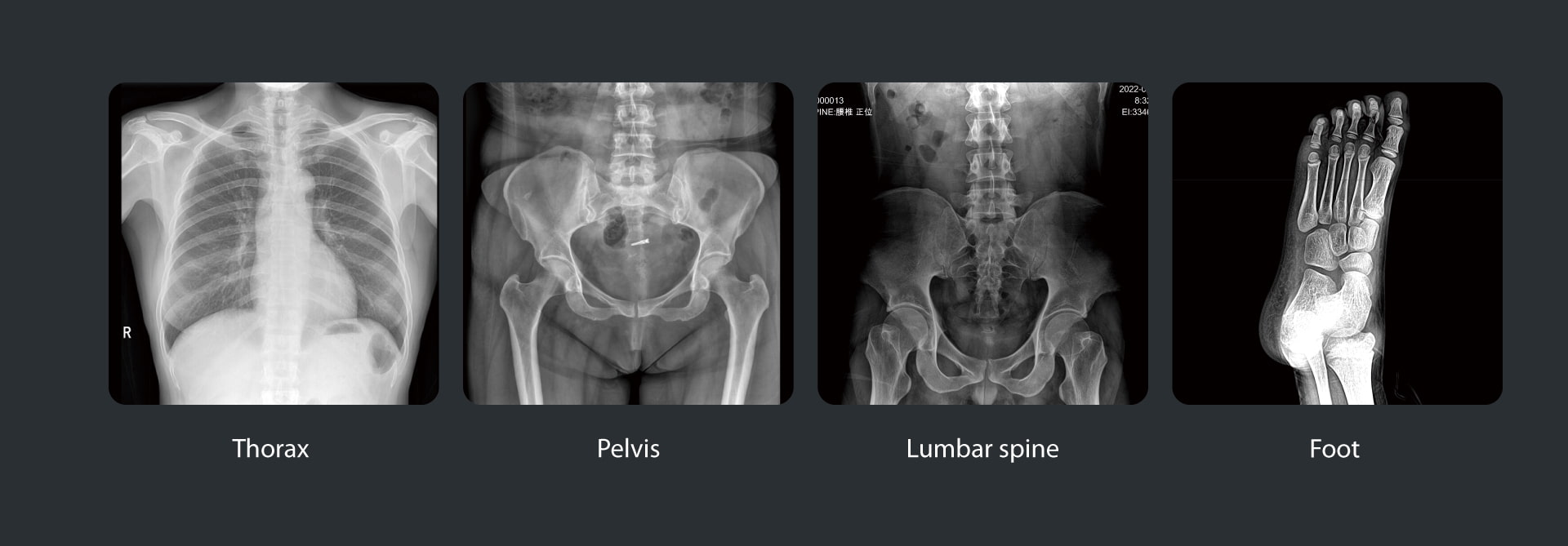

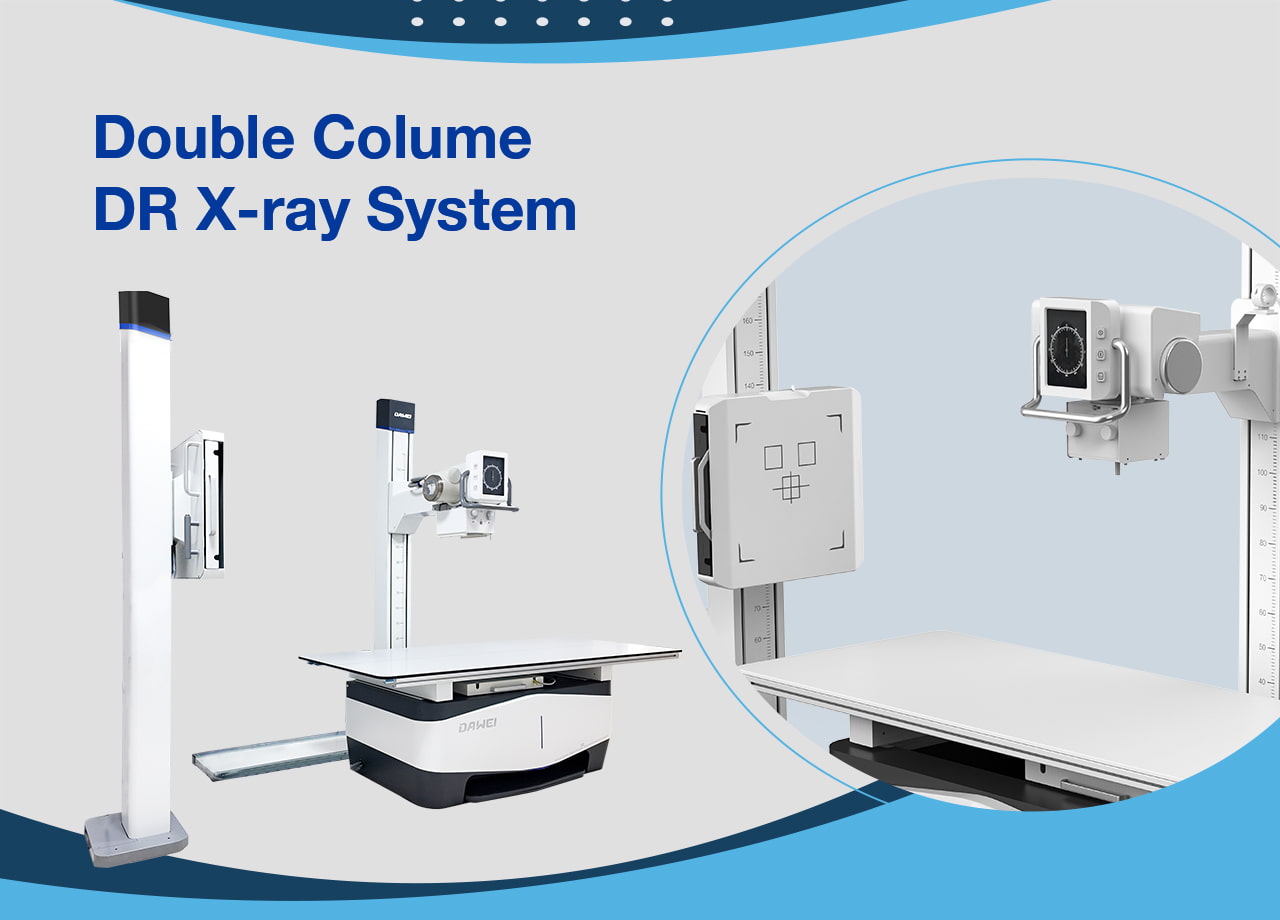

The RD-850RS/832RS digital X-ray radiography system is a fixed double-column X-ray equipment. It is used for routine photography of patients to obtain a single image for clinical diagnosis. It can be used for X-ray imaging diagnosis of the human head, spine, chest, abdomen, limbs, and other parts.

库存： 0

Inquiry

Specifications

DW-P60 is a portable color ultrasound scanner. Its compact design makes it easy to carry around. It is also equipped with a lithium battery and has a working time of more than 2 hours. Easy switching between multiple scenarios: outpatient service, mobile in-car service ICU, A&E, and bedside examinations.

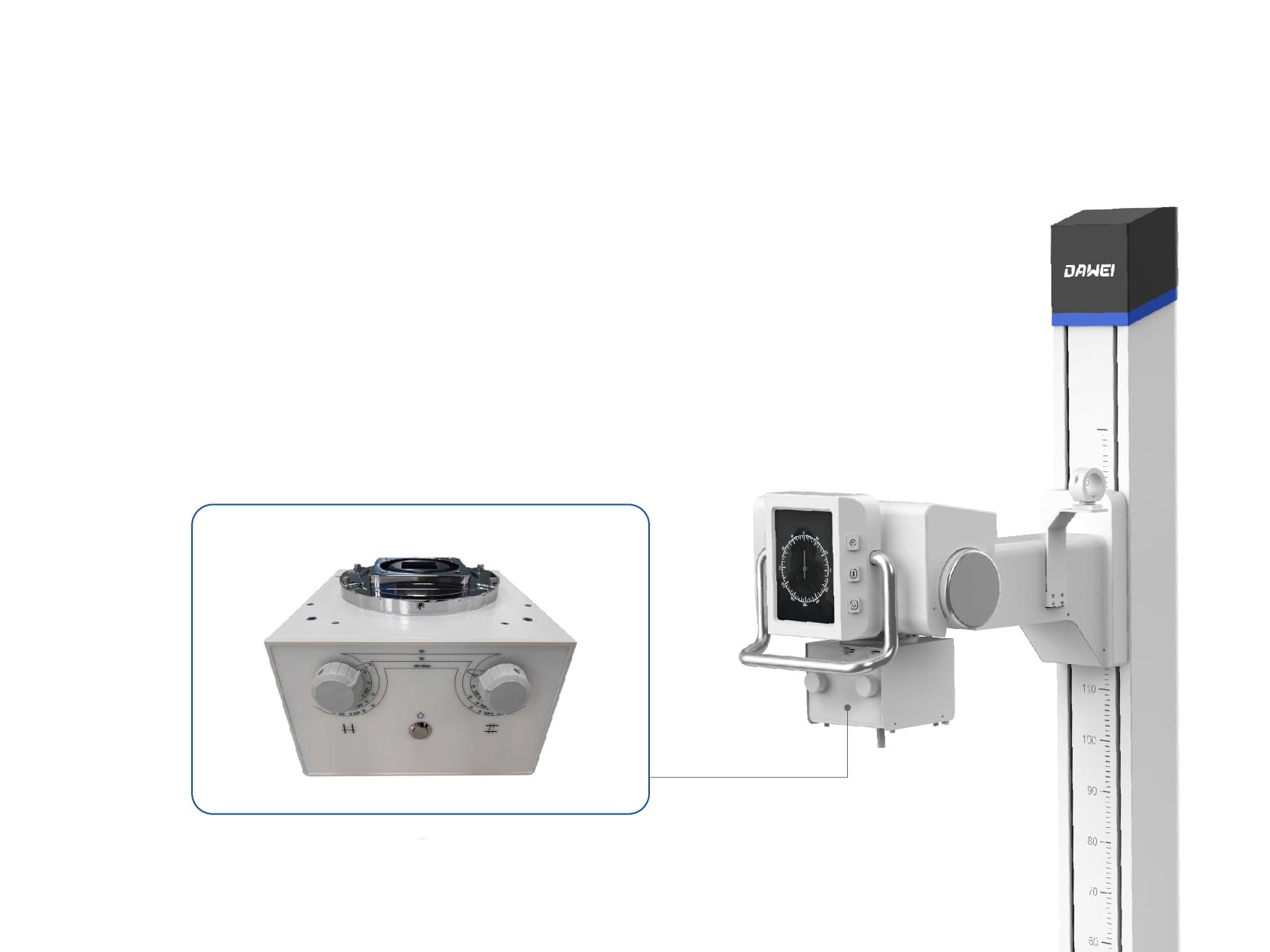

Manual Control Collimator

easy installation

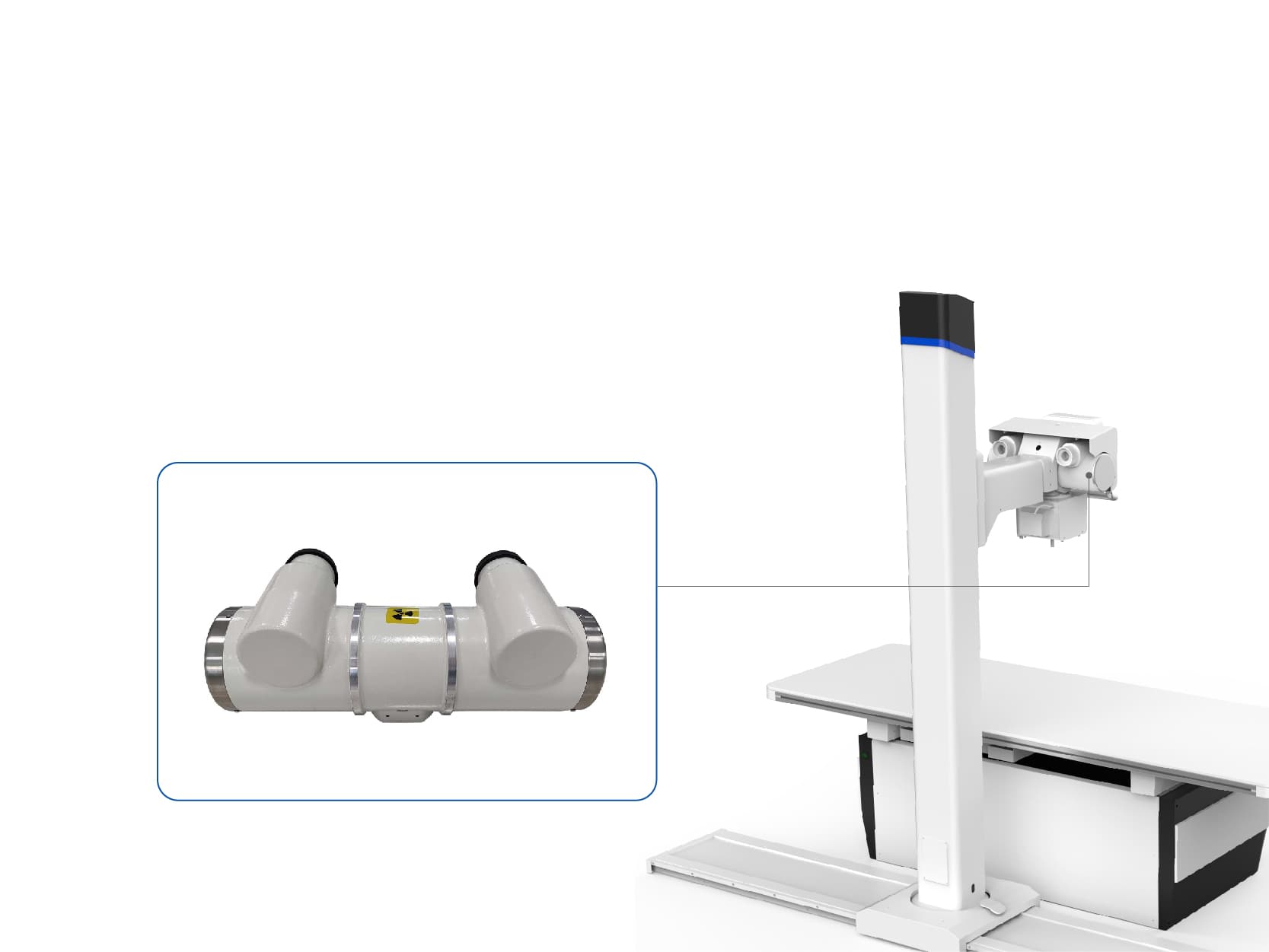

X-ray Tube Assembly

achieve stable, continuous exposure to the requirements of constant work.

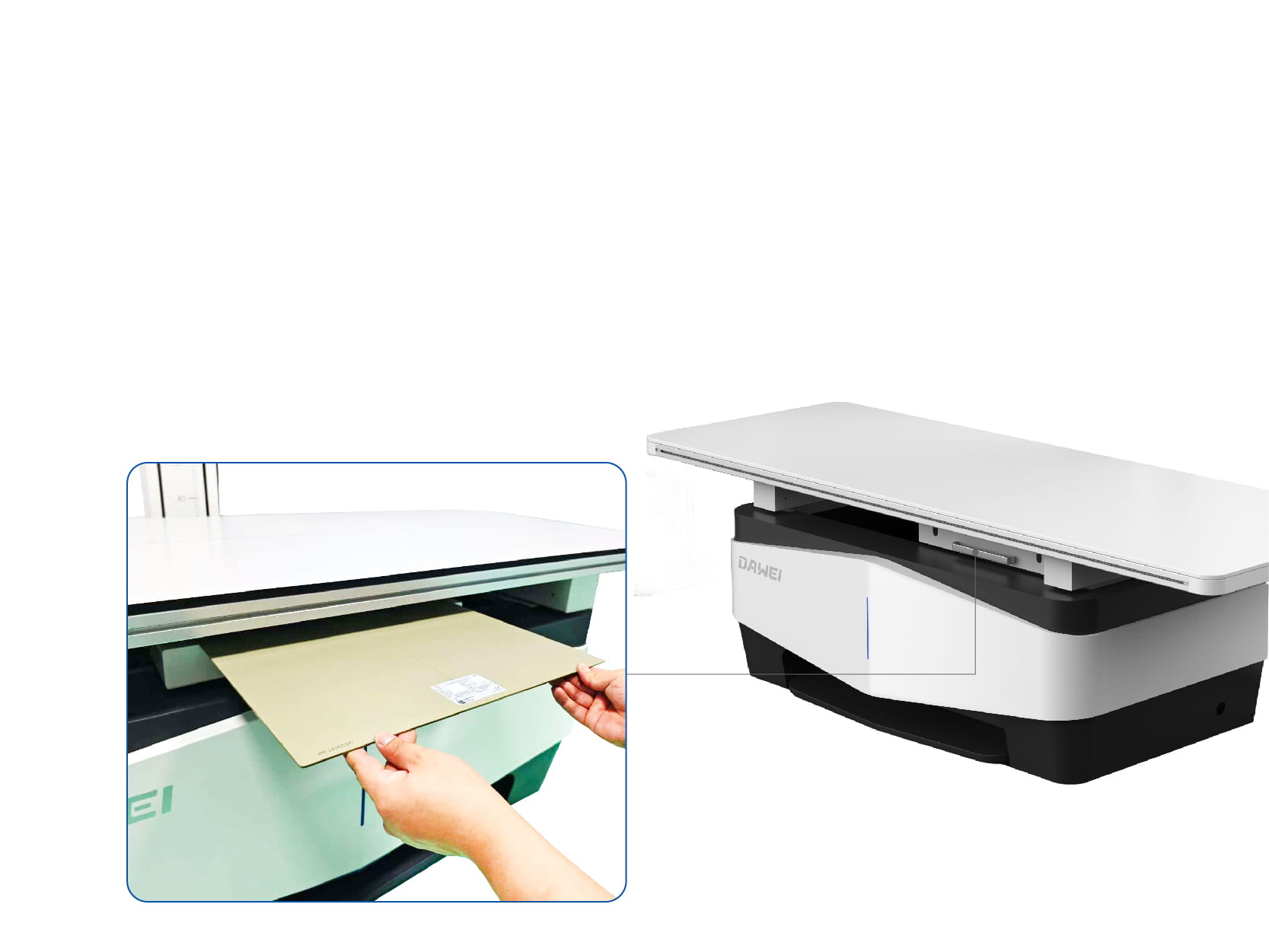

Grids

capable of filtering out excess scattered rays and improving image quality

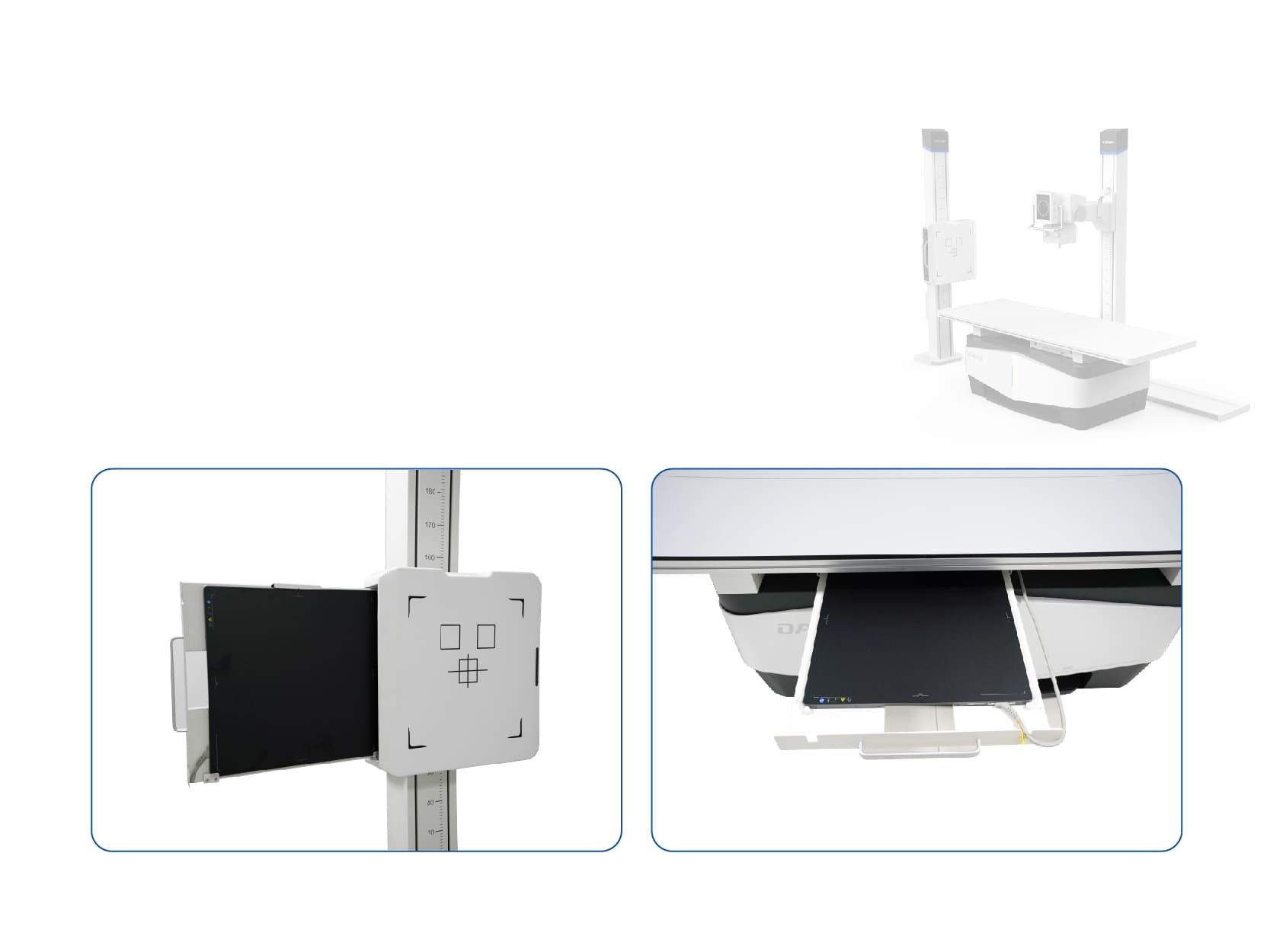

Flat Panel Detector

large imaging area, meeting the requirements of many clinical photography

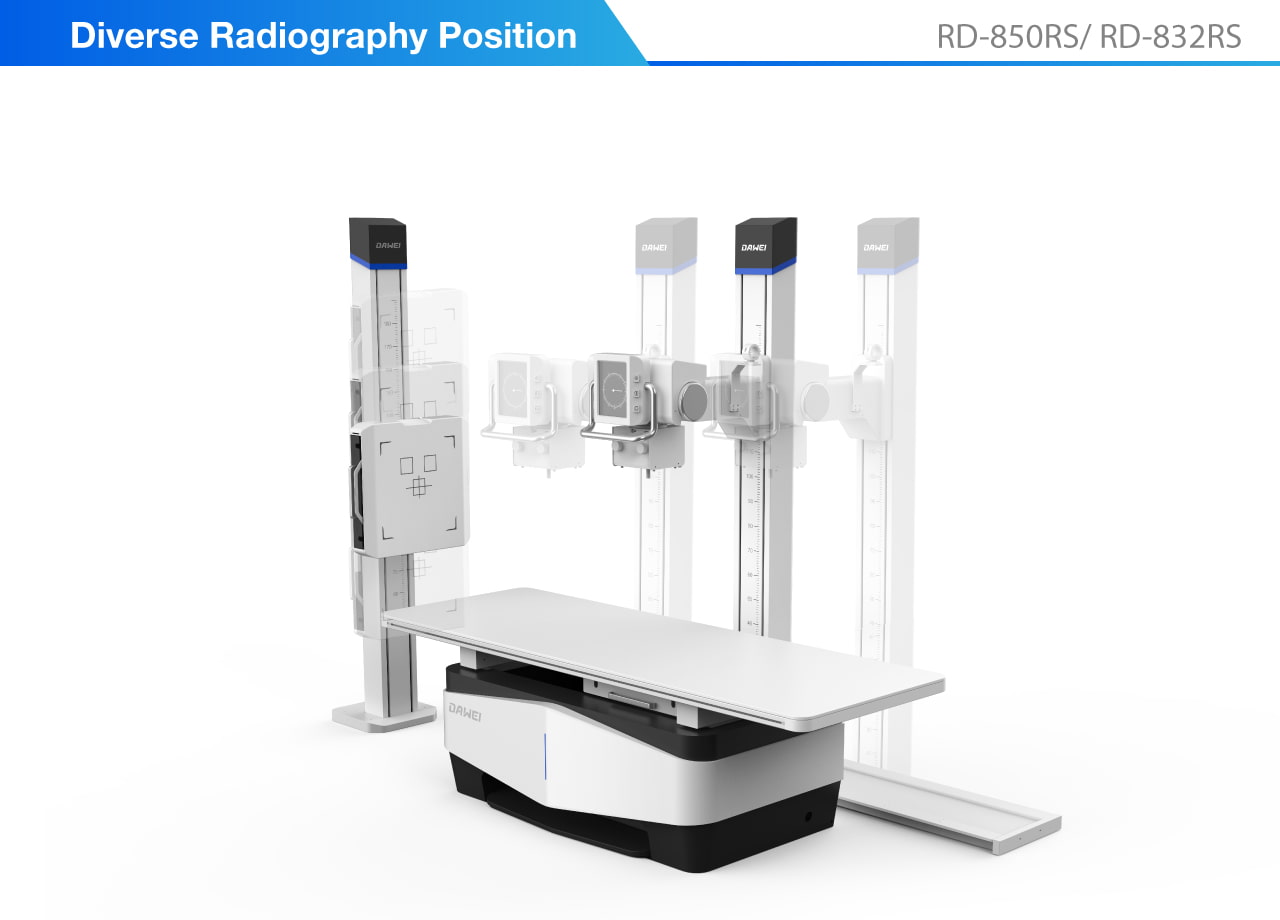

The independent, motorized movement of the floor-to-ceiling column allows rapid, flexible, and precise positioning of both the X-ray tube and the detector (wall Bucky, table Bucky, or vertical holder) around the patient in sitting, lying, and standing positions without needing to manually move heavy equipment. This enhances workflow, reduces technologist strain, and improves positioning accuracy across all exam types.

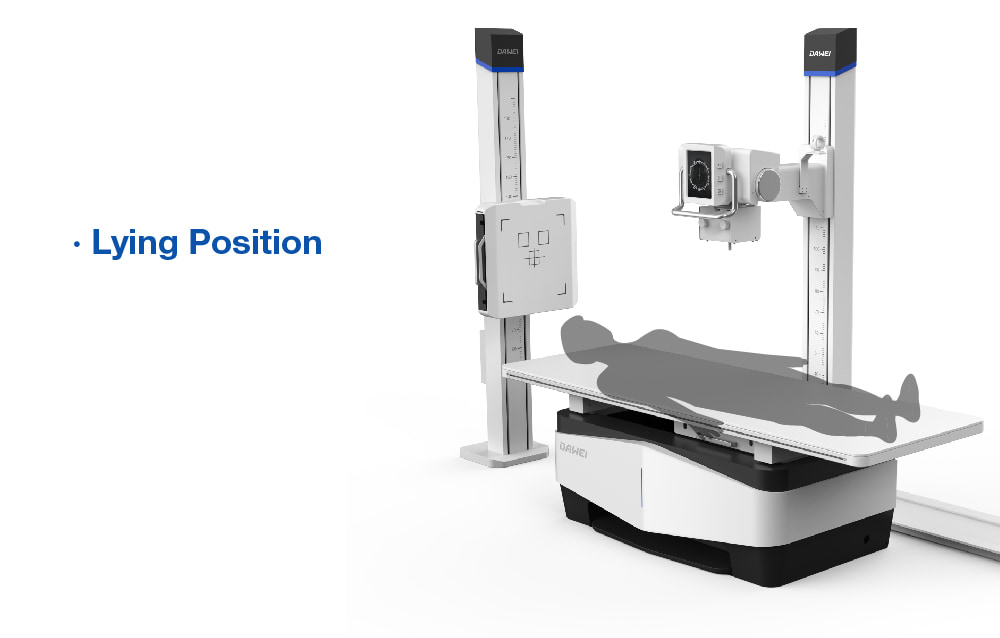

●The patient lies on the integrated radiographic table. The detector is typically positioned under the table in the table Bucky. The X-ray tube moves overhead. For cross-table or decubitus views, the detector can be placed vertically beside the table, moved the column, and tube angles.

●Standard for table-based exams, post-operative imaging, and patients unable to sit/stand.

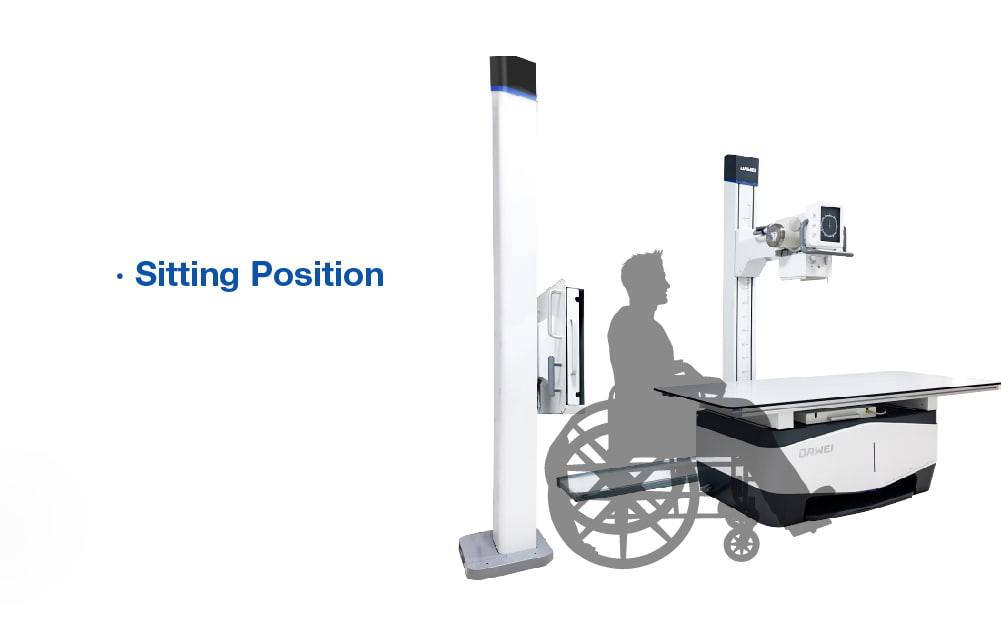

●The flat-panel detector is placed behind the patient's seat, such as a wheelchair. The X-ray tube is positioned opposite the detector at the required height and angle.

●Ideal for patients who cannot stand, for specific seated spine views, chest X-rays in frail patients, or specialized seated joint studies.

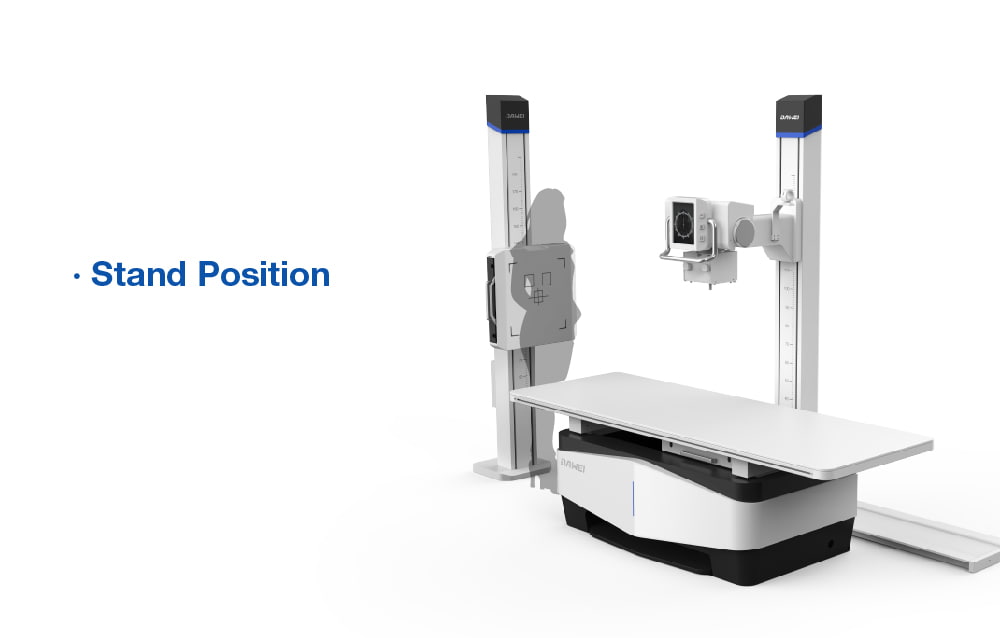

●The patient stands upright, typically facing the detector holder mounted on one column. The X-ray tube (on the opposite column) is positioned at the correct height and distance (SID) opposite the detector.

●Standard chest X-rays, upright abdomen, weight-bearing spine, weight-bearing knees/feet, and any exam requiring evaluation under gravity.

Dawei DR image acquisition and processing software

This software is comprised of following modules which provides a work flow of

patient study:

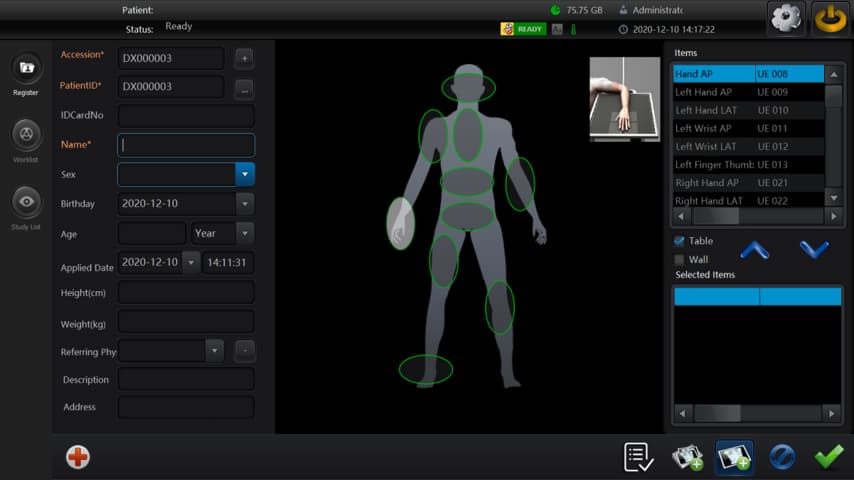

Patient Management: including patient registration, work list, study management.

Study operation: including bodypart selection, study items selection, image acquiring. 

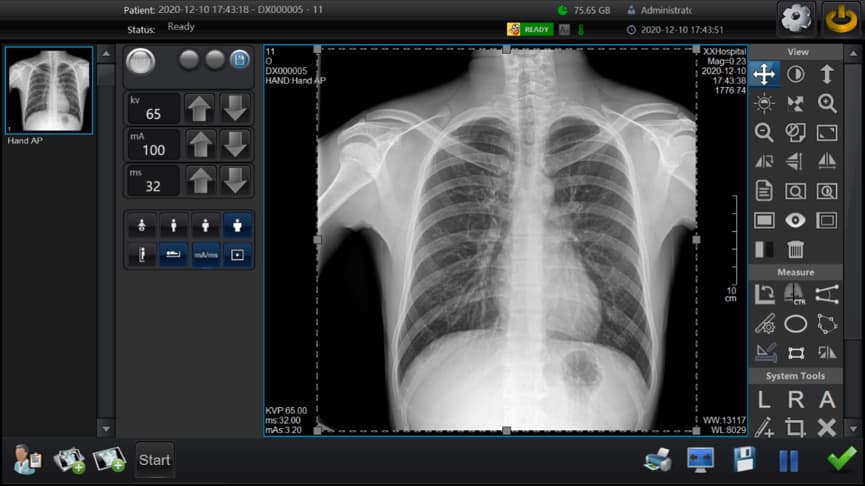

Image preview: including display, layout and processing of image. Also tool options for advanced operation. 

Configuration: including configuration of system, study and user management. Especially the configuration for worklist and storage.
