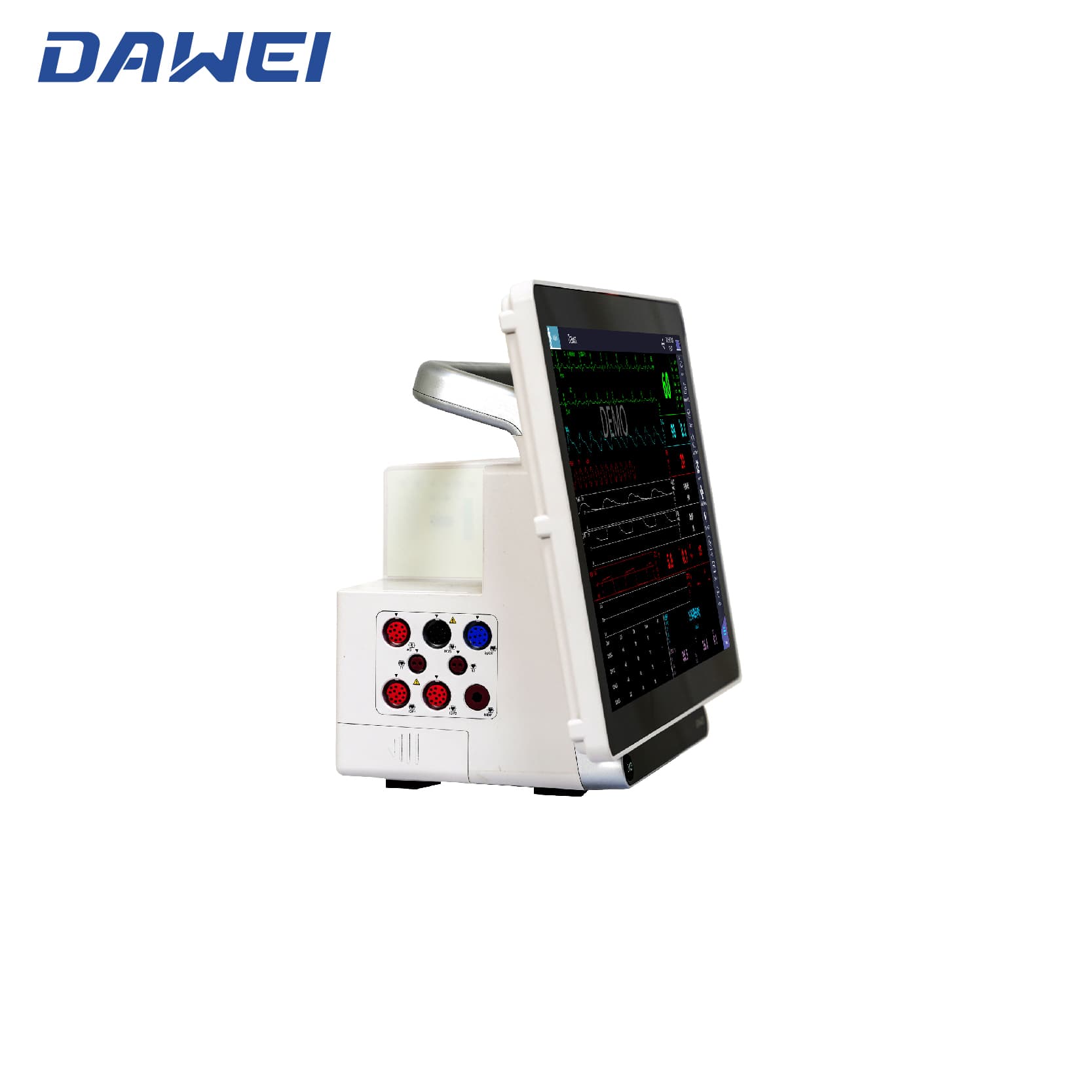

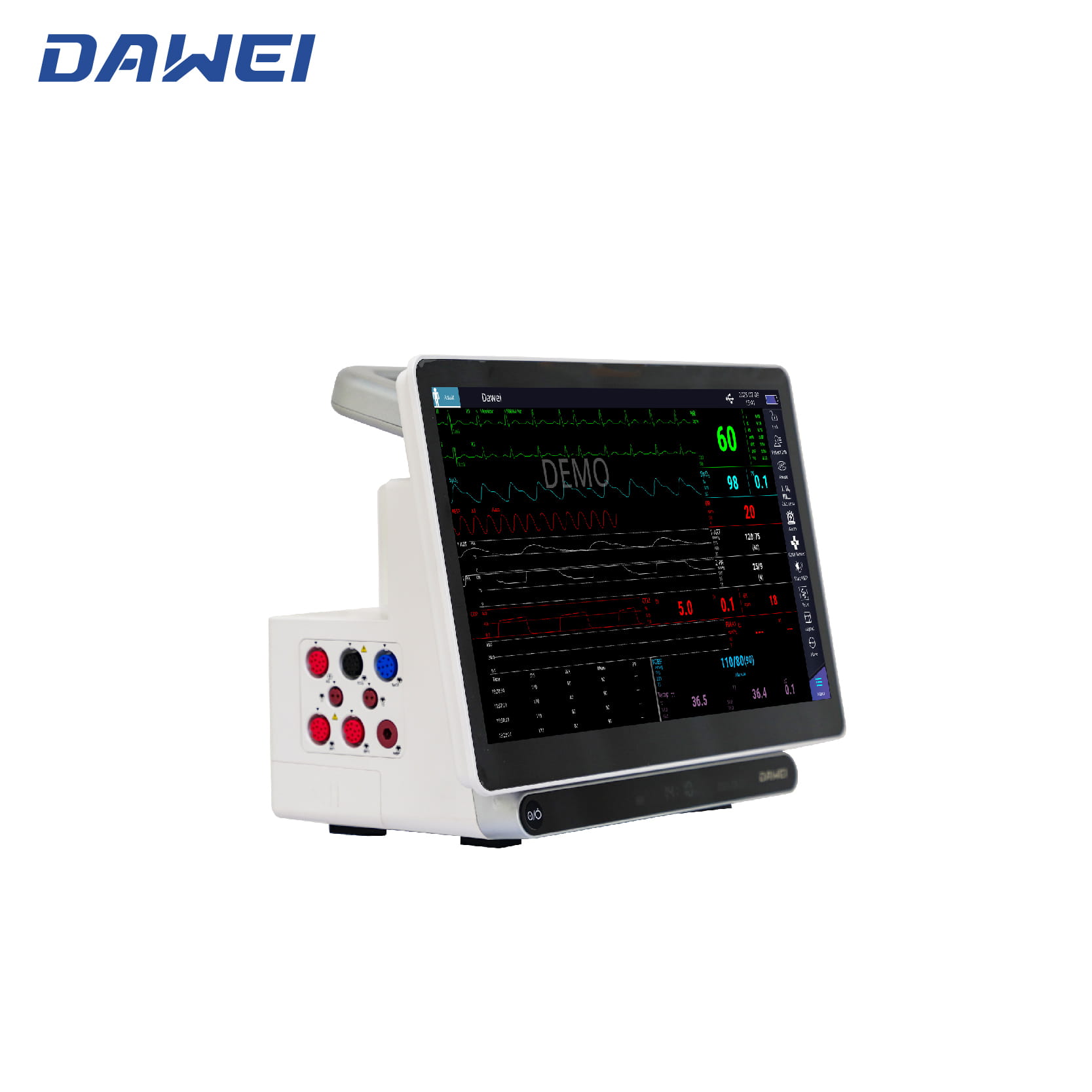

Modular Patient Monitor

Model：
HD30/HD31

This is Dawei Medical's latest M30 series dual-screen monitor, available in two models: HD30 and HD31, based on the size of the main screen. This multiparameter patient monitor also features a modular design, allowing users to quickly replace and upgrade modules.

库存： 0

Inquiry

iFastBP non-invasive blood

pressure technology

excellent anti-exercise and

intelligent measurement

wSmartHeart intelligent

ECG technology

ECG fast recovery technology and

intelligent optimization analysis

lead technology

Renesas G2L dual-core

Arm Cortex-A55

Can efficiently handle

multi-threaded tasks

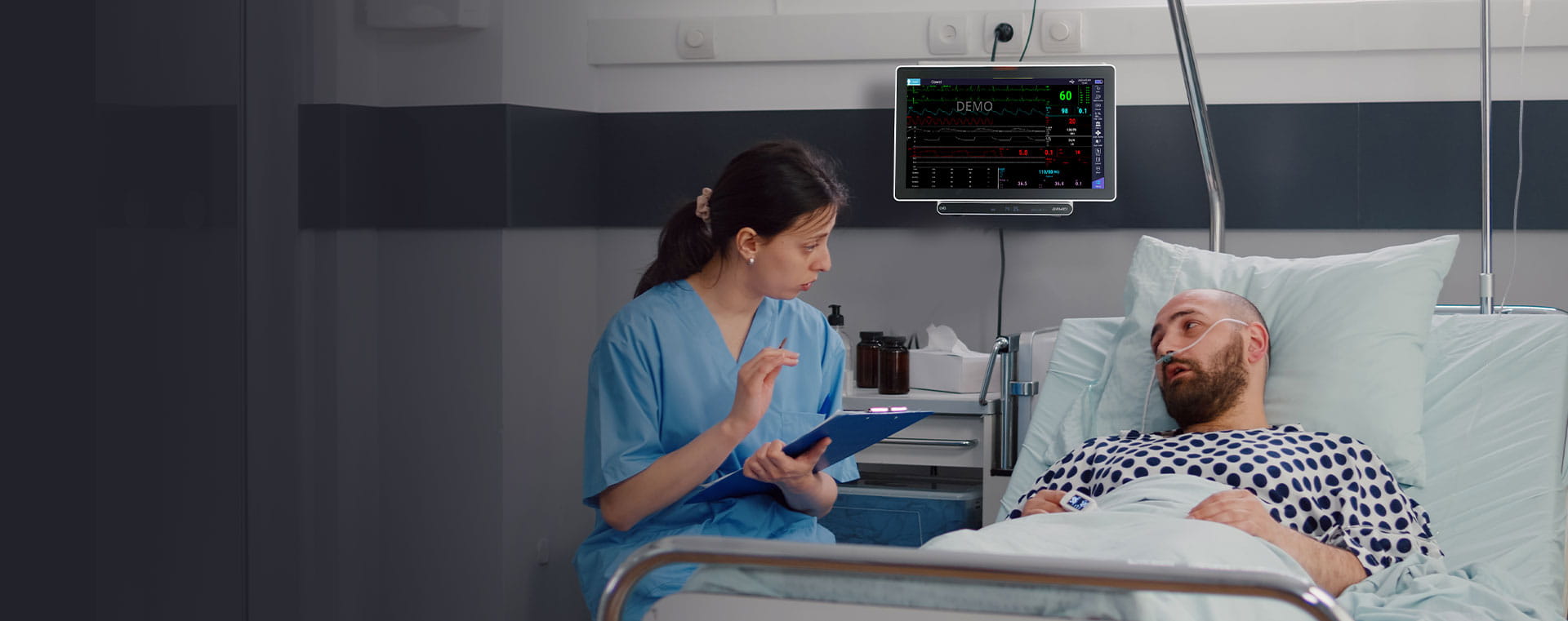

Modular Patient Monitors

with Touch-screen

As part of Dawei Medical's intelligent medical device product

portfolio, the HT15/HT18 patient monitors are deeply developed based

on the Linux system. They feature a simple and elegant design,

dual primary and secondary displays, and a high-performance

hardware architecture, fully embodying a sense of professionalism

and technology. Combining high-end monitoring technology

with highly integrated hardware modules, they can rapidly respond

to increasingly complex clinical needs.

Product Description

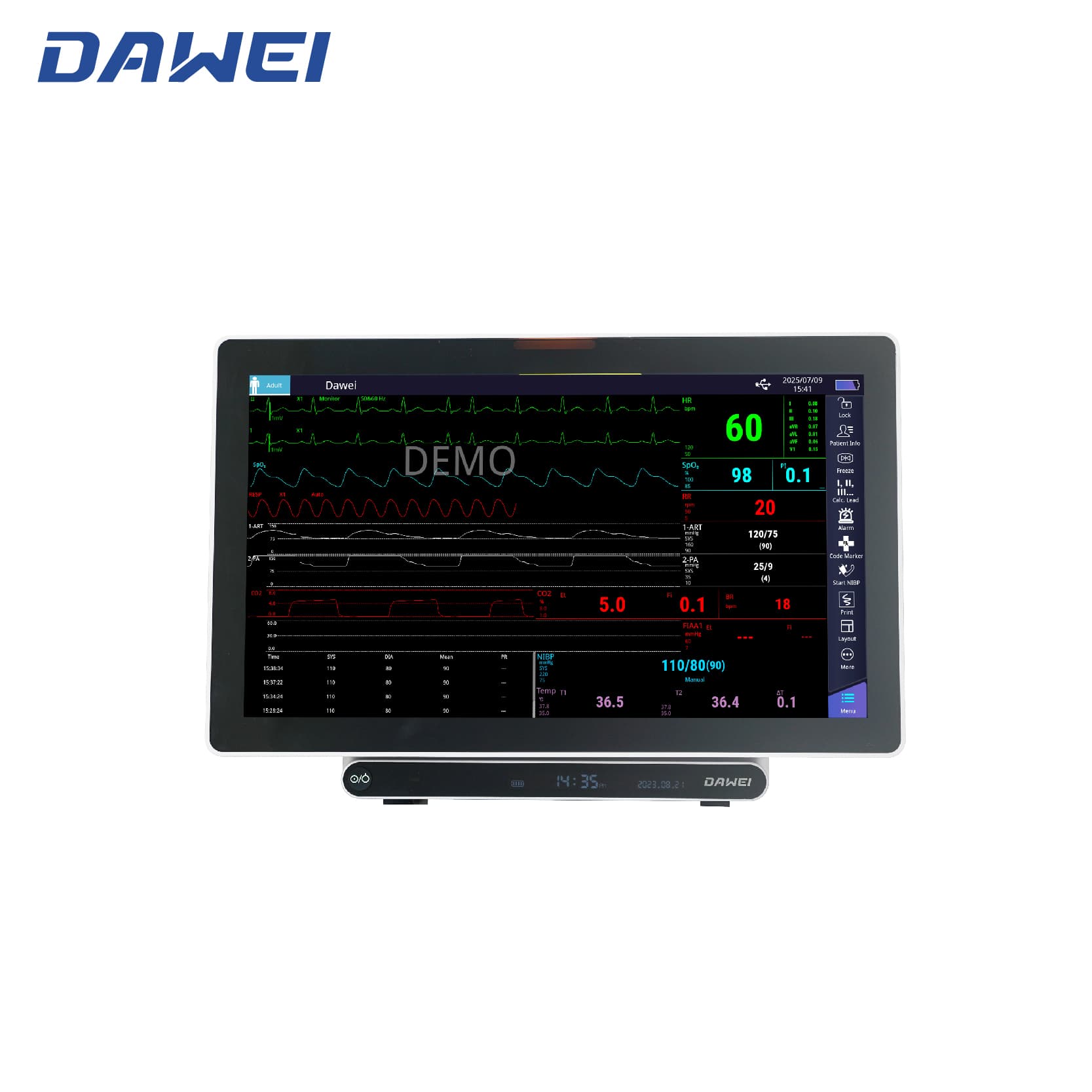

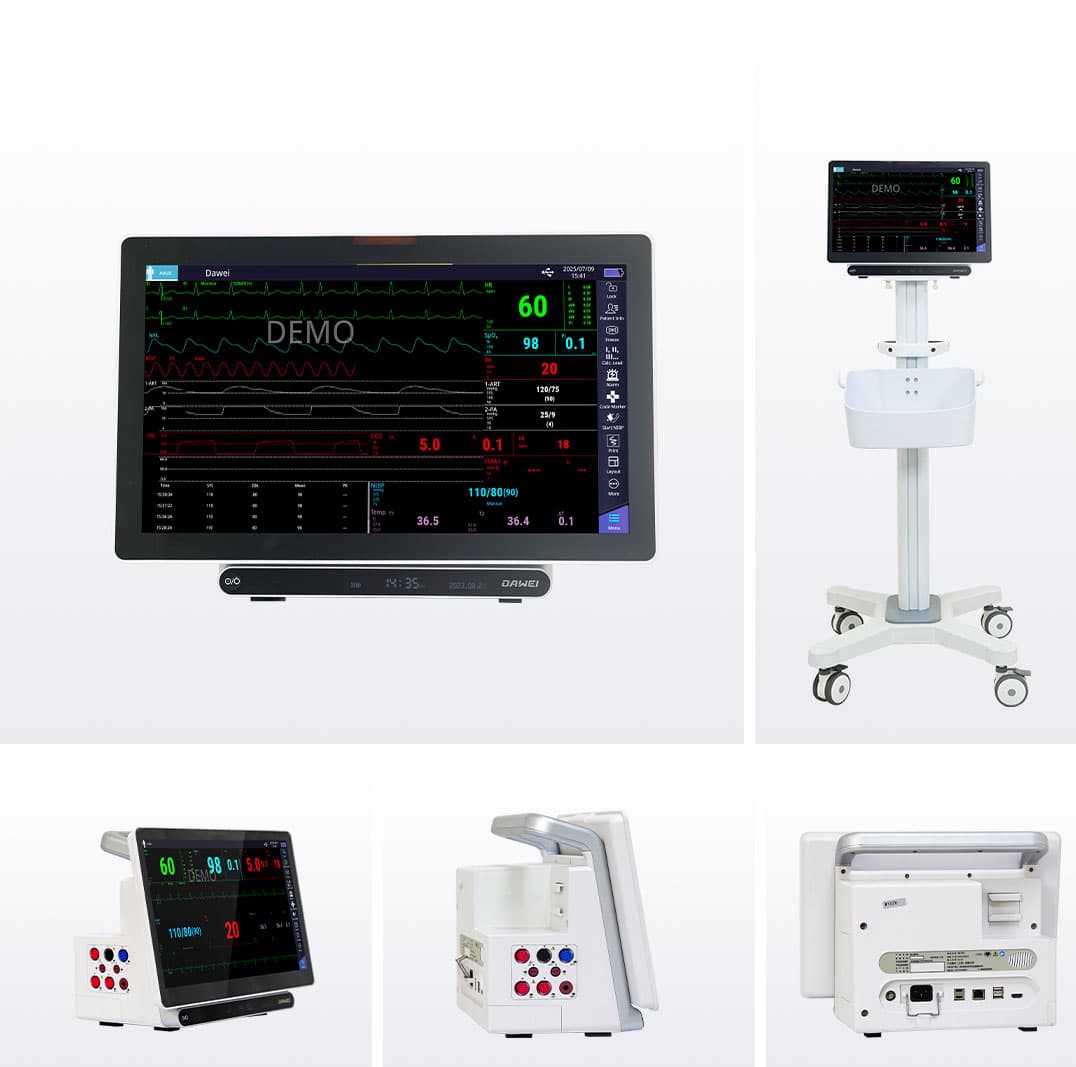

Dual-screen display

15.6-inch/18.5-inch main touch screen + 4.9-inch secondary screen. The main screen boasts a high-resolution 1920*1080 resolution and supports simultaneous display of 12 waveforms and multiple parameters.

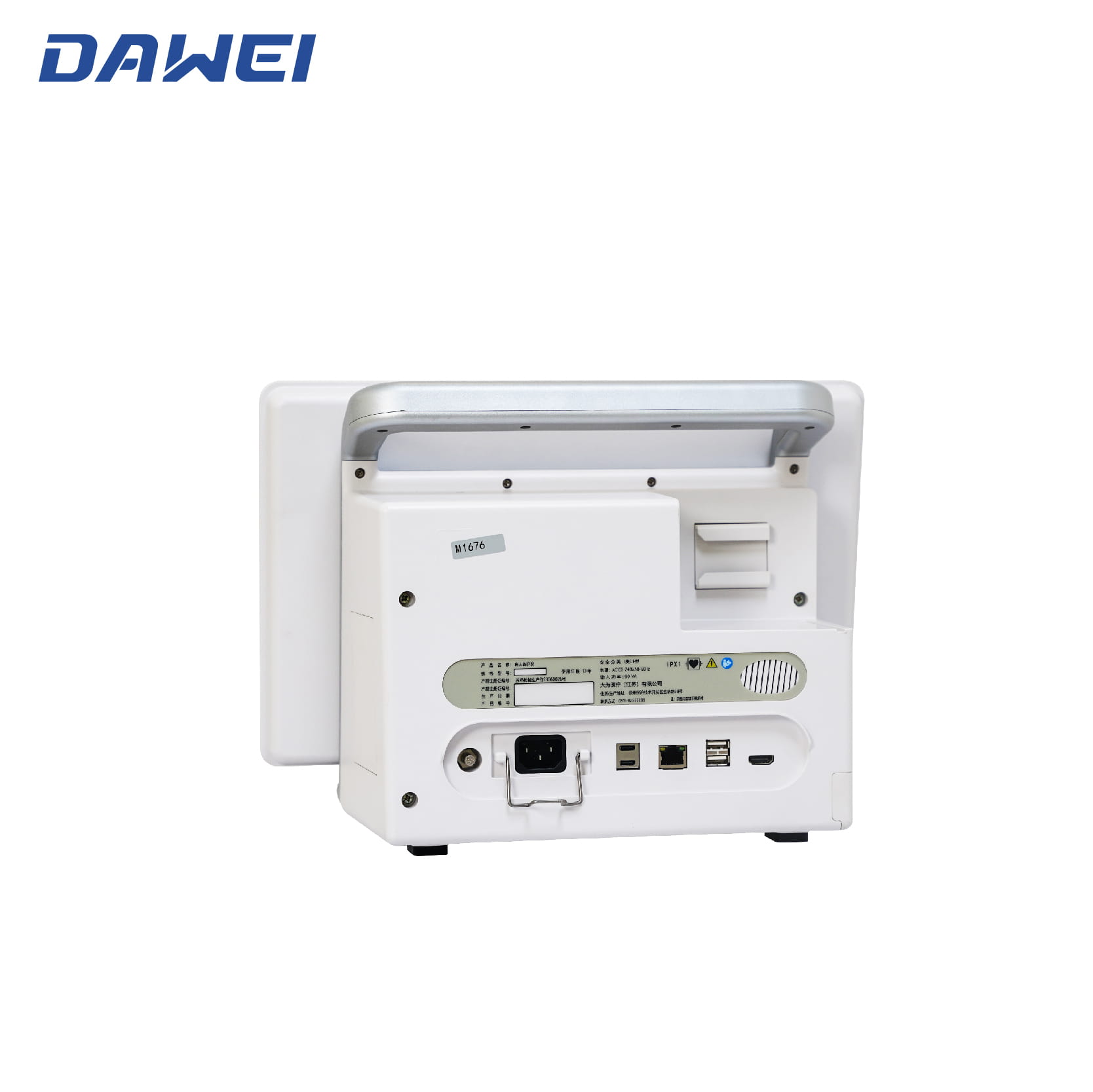

Multiple ports

An HDMI port, dual USB ports, dual Type-C ports, and a LAN port. HDMI allows for direct connection to a large display for teaching assistance and remote guidance. The dual USB ports and Type-C port allow for data transfer, while the LAN port connects to an external network cable.

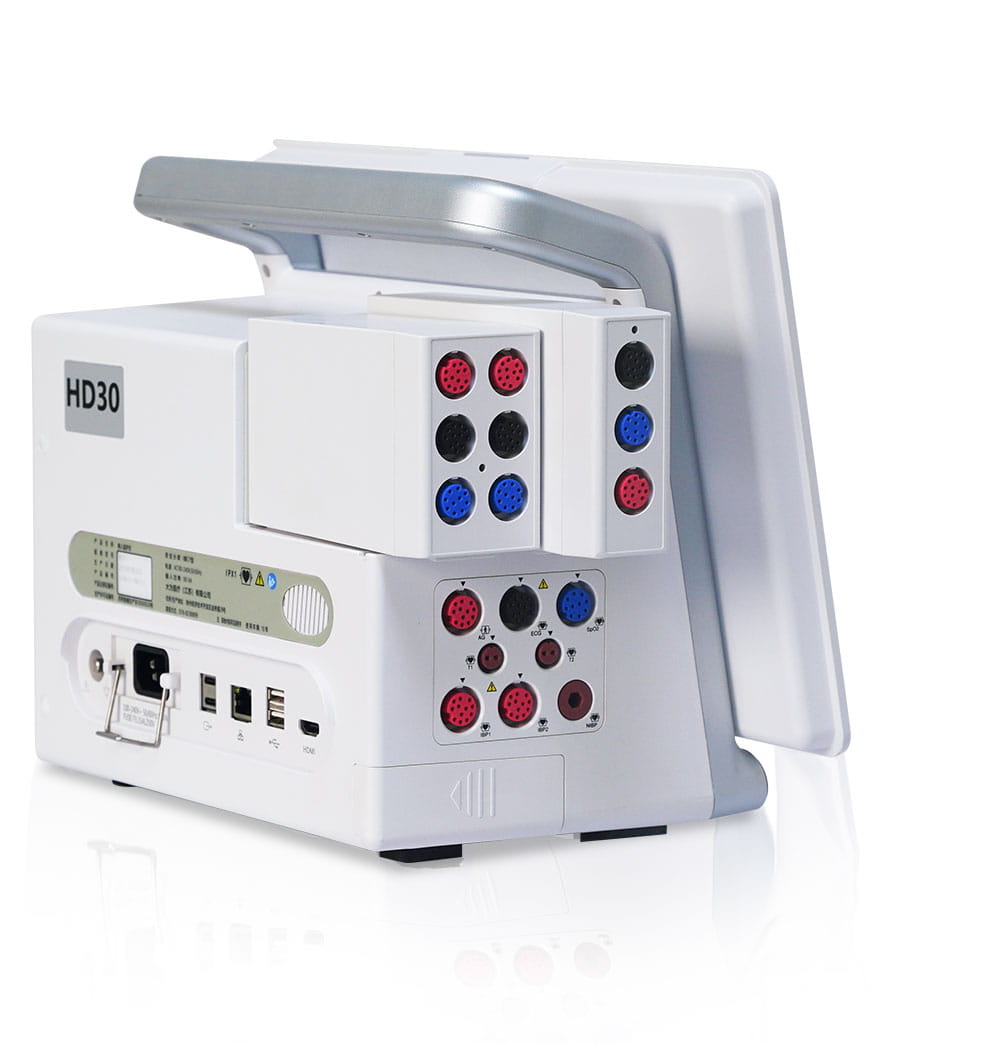

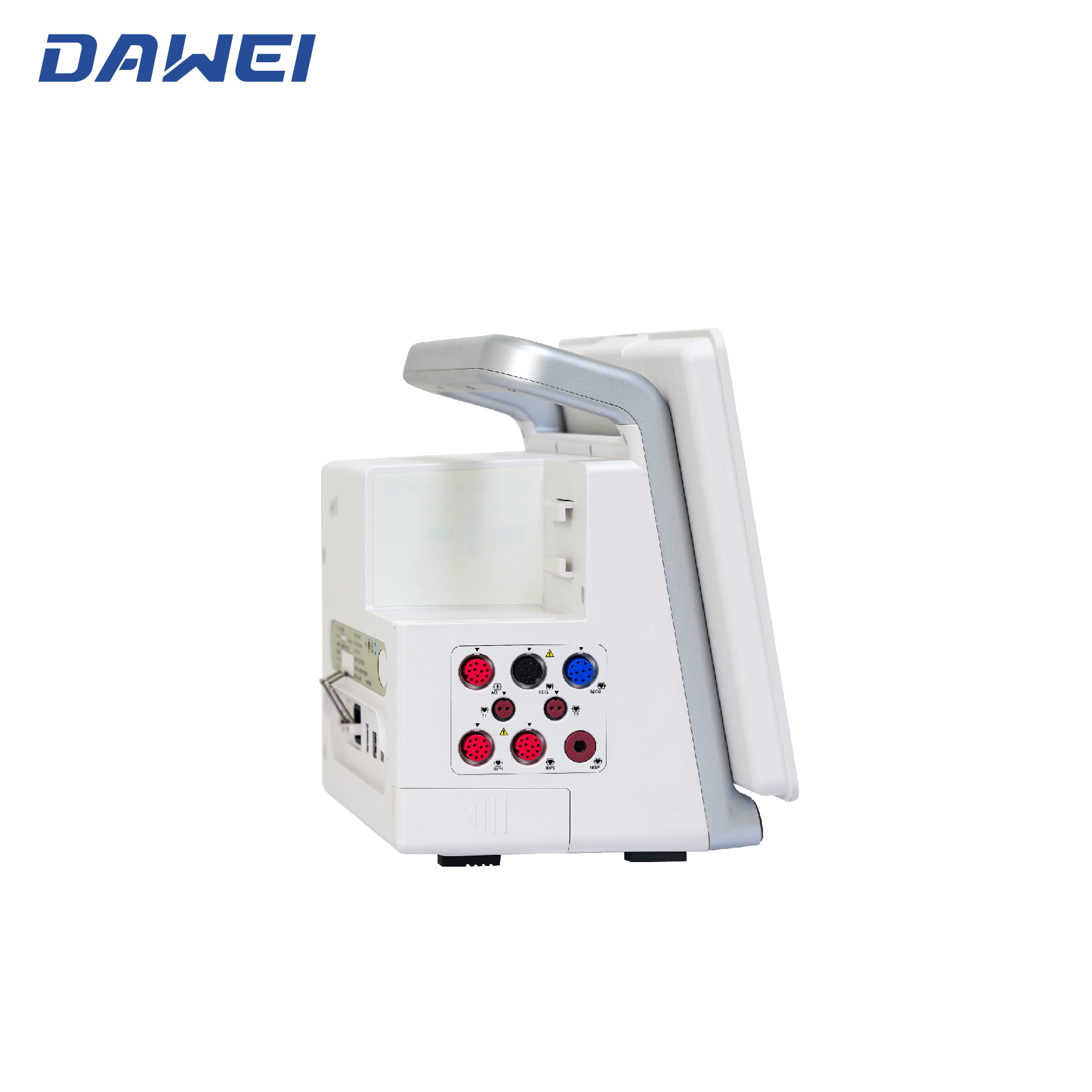

Modular Design

The HT18/HT15 patient monitors feature a modular design, allowing for quick module replacement or upgrades based on patient needs.

Plug-and-play functions

Ensuring medical staff can quickly integrate new devices, improving work efficiency.

Scalability and Compatibility

Ensuring compatibility between new and existing devices, extending device lifespan.

Customization options

Meeting the individual needs of different medical institutions and patients.

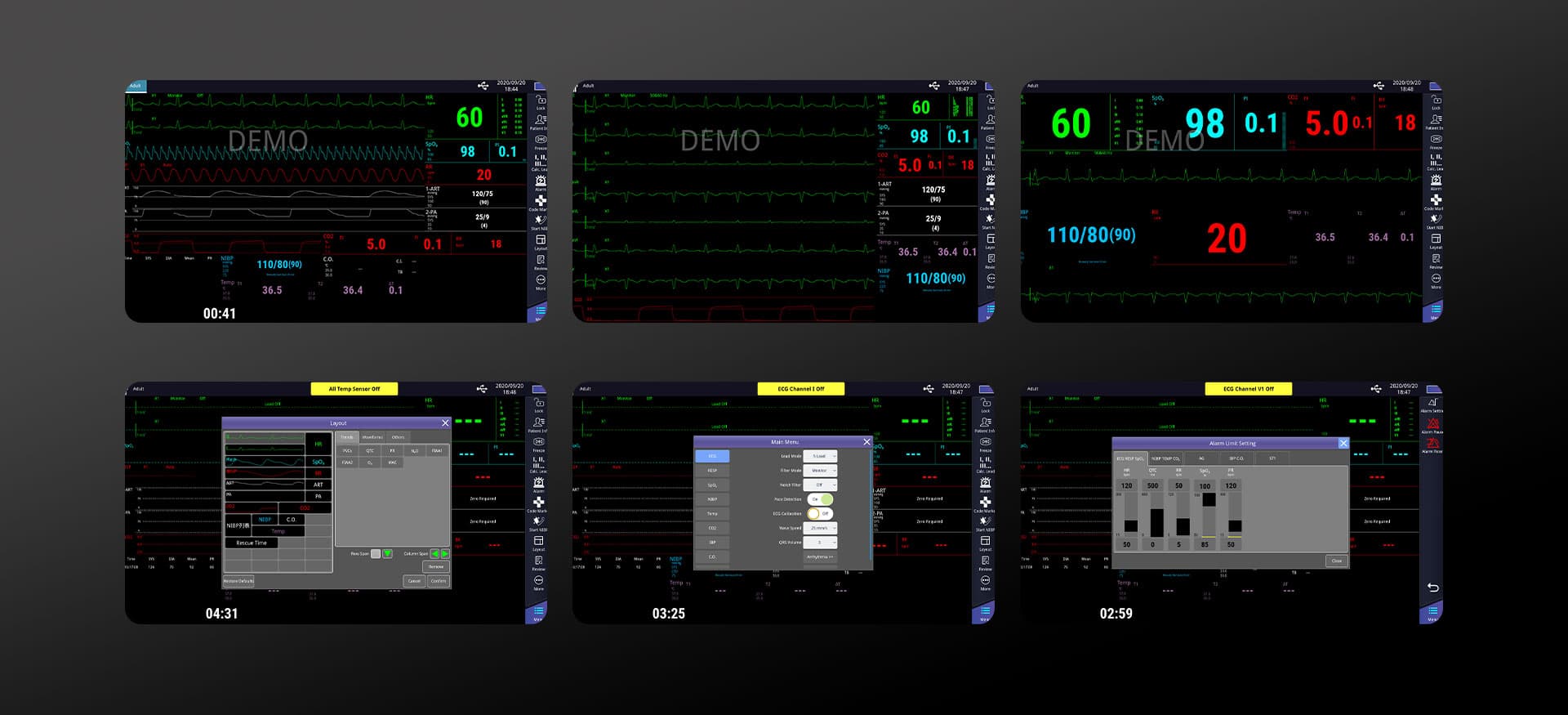

Modular Patient

Monitor Features

Support large fonts, 7+1 leads on the same screen, 12-lead ECG interface, standard interface, respiratory oxygen and graph, trend coexistence interface, list interface, privacy mode, other bed observation, night mode; support drug calculation, hemodynamic calculation, renal function calculation, oxygenation calculation

≥1000 event reviews. Each alarm event can store at least three relevant waveforms for 32 seconds, as well as all measured parameter values when the alarm is triggered

The mainboard software supports atrial fibrillation and supraventricular arrhythmia analysis functions, such as supraventricular tachycardia, SVCs/min, etc., and supports ≥27 real-time arrhythmia analysis options

Support languages: Chinese, English, Portuguese, French, Italian, Spanish, Turkish, Russian
