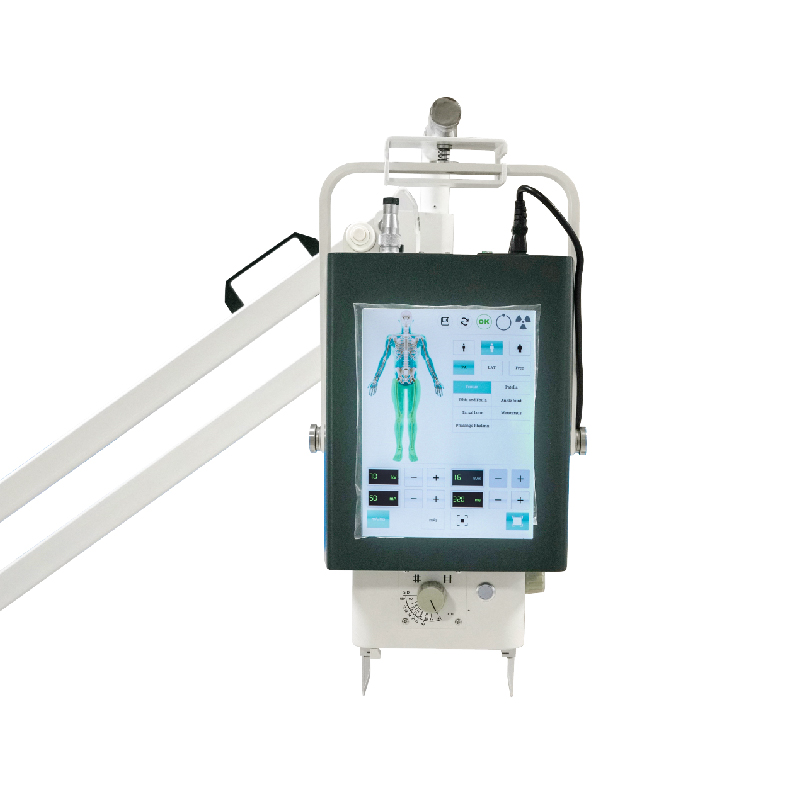

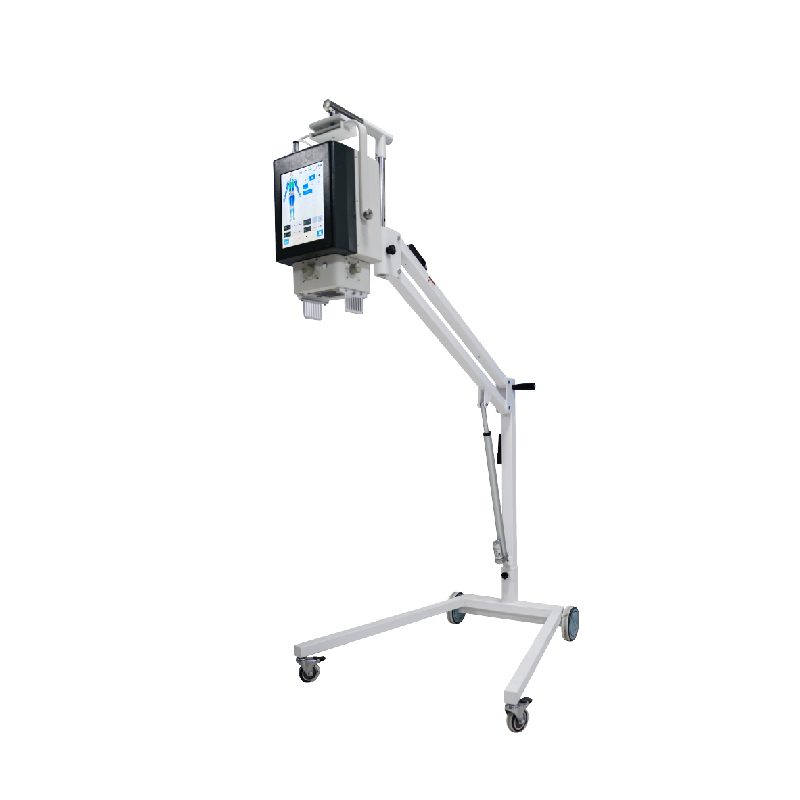

Portable Digital Radiology X-ray Equipment
The mobile DR x-ray system are designed for portability and versatility, this system enables healthcare professionals to perform high-quality digital radiography exams directly at the patient's bedside, eliminating the need for patient transportation and reducing wait times. Its compact design and intuitive user interface make it easy to operate in diverse clinical settings, enhancing workflow efficiency and enabling timely medical interventions.
Specifications
Advantage
· Small size, light weight, and easy to carry.
· Suitable for some complex outdoor shooting environments.
· Stable product performance, clear images, and easy operation.



Parts

Processing software

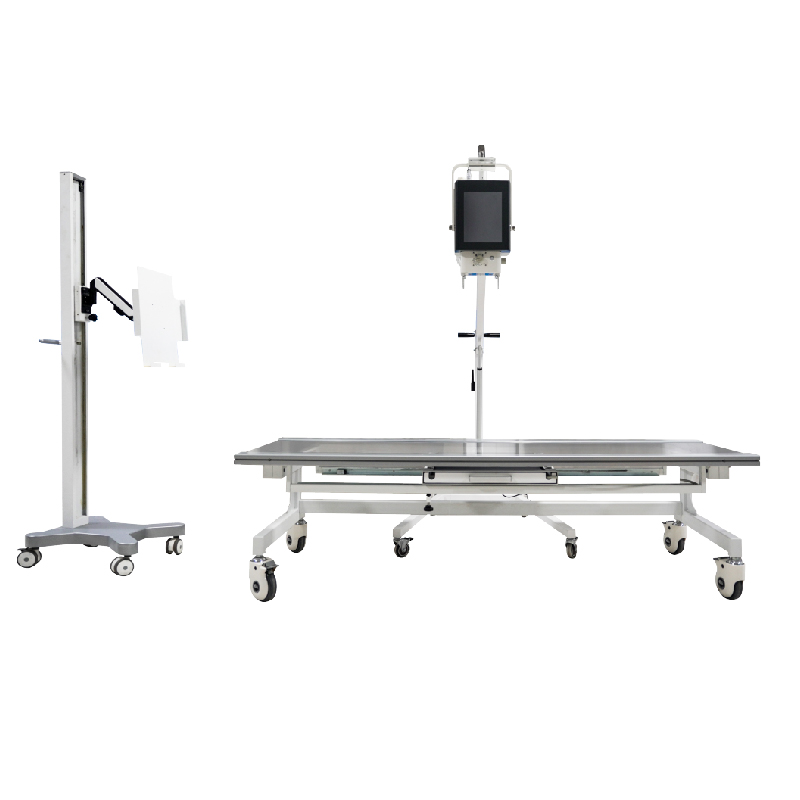

Mobile stand
Parameter
Item
Item
Parameters
Output Power
5.3kW
Rated Voltage
220VAC, ±10%, 50/60Hz
Inverter Frequency
100kHz,+/- 5%
kV Range
40kV-125kV
mA Range
10-100mA
ms Range
1-4000ms
mAs Range
0.1-200mAs
Focus size
0.6-1.8
Volume
450*255*220
Package Size
540*365*325
Net Weight
15 kg
Gross Weight
22kg
Clinical Images
