How To Operate An ECG Machine: A Comprehensive Guide

An ECG machine (also known as an EKG machine) is an essential diagnostic tool in modern healthcare, allowing clinicians to monitor and record the electrical activity of the heart. Proper operation of the ECG machine is critical for accurate readings and effective patient care. This guide provides a detailed overview of how to operate an ECG machine, including device preparation, patient preparation, electrode placement, the ECG recording process, troubleshooting common issues, and maintenance tips.

Table of Contents

1. Introduction to ECG Machines

2. Preparing the ECG Machine

3. Patient Preparation

4. Electrode Placement

5. ECG Recording Process

6. Post-Recording Procedures

7. Troubleshooting Common Issues

8. Maintenance and Calibration

9. Conclusion

Introduction to ECG Machines

An ECG machine records the electrical impulses generated by the heart and provides crucial information about heart rate, rhythm, and electrical activity. The machine typically includes electrodes, lead wires, and a recording device. It captures electrical signals from the heart, converting them into waveforms that are displayed on a monitor or printed on paper. These waveforms help clinicians assess the condition of the heart and detect abnormalities such as arrhythmias, heart attacks, or other cardiac issues.

Key Components:

• Electrodes: These are placed on the patient’s body to detect the electrical signals from the heart.

• Lead Wires: The electrodes are connected to lead wires that transmit the signals to the ECG machine.

• Recording Device: This is the heart of the ECG machine, which displays the heart’s electrical activity as waveforms.

Preparing the ECG Machine

Before using the ECG machine, ensure the device is correctly set up for accurate readings:

• Power On: Turn on the ECG machine using the main power switch.

• Check Settings: Make sure the ECG machine is set to the appropriate mode (e.g., resting ECG, stress test).

• Check Paper and Ink: Ensure the paper roll is correctly installed, and the ink cartridge or thermal paper is functioning properly.

• Lead Connection: Verify that all lead wires are securely connected to the ECG machine and are free from any damage or wear.

• Machine Calibration: If necessary, calibrate the machine according to the manufacturer’s instructions to ensure precise measurements.

Patient Preparation

Proper patient preparation is crucial for obtaining accurate and reliable ECG results:

• Explain the Procedure: Inform the patient about the procedure and address any concerns to help them relax.

• Remove Obstructions: Instruct the patient to remove any jewelry, watches, or clothing that may interfere with electrode placement.

• Positioning: The patient should lie flat on their back in a comfortable position with their arms resting at their sides.

• Skin Preparation: Clean the areas where electrodes will be placed to remove oils, lotions, or dirt that could interfere with electrode adhesion.

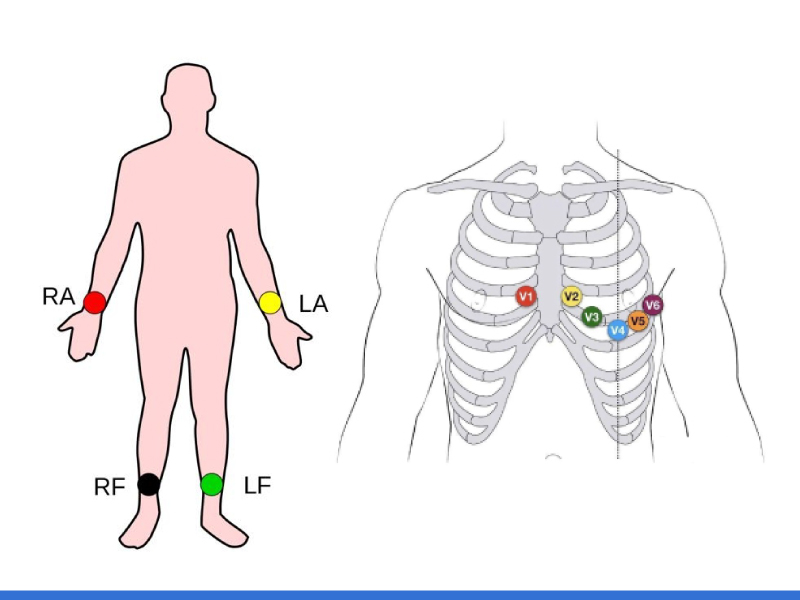

Electrode Placement

Correct electrode placement is key to obtaining accurate ECG readings:

• Limb Leads:

• RA (Right Arm): Place on the right wrist or forearm.

• LA (Left Arm): Place on the left wrist or forearm.

• RL (Right Leg): Place on the right ankle or lower leg.

• LL (Left Leg): Place on the left ankle or lower leg.

• Chest Leads:

• V1: Fourth intercostal space at the right sternal border.

• V2: Fourth intercostal space at the left sternal border.

• V3: Midway between V2 and V4.

• V4: Fifth intercostal space at the midclavicular line.

• V5: Level with V4 at the anterior axillary line.

• V6: Level with V5 at the midaxillary line.

Ensure the electrodes are firmly attached to the skin to minimize interference and obtain clear signal recordings.

ECG Recording Process

Once the patient is properly positioned and electrodes are in place, follow these steps to record the ECG:

• Start Recording: Press the "Record" button on the ECG machine to begin capturing the heart’s electrical activity.

• Monitor the Waveforms: Observe the waveforms displayed on the screen to ensure they are clear and undistorted.

• Adjust Settings: If necessary, adjust the machine’s settings such as gain and paper speed to optimize the quality of the ECG trace.

• Duration: A standard ECG recording typically lasts for about 5–10 seconds, depending on the machine’s settings and the type of test being conducted.

Post-Recording Procedures

After completing the ECG recording, follow these steps:

• Review the Results: Examine the ECG printout for any irregularities or abnormalities.

• Label the Data: Ensure the patient’s information, date, and time are properly labeled on the ECG results.

• Store the Results: File the ECG printout in the patient’s medical record for future reference and analysis.

• Clean the Equipment: After use, clean the ECG machine and electrodes using appropriate disinfectants to ensure hygiene.

Troubleshooting Common Issues

During the ECG recording process, you may encounter common issues. Here’s how to troubleshoot them:

• Poor Signal Quality:

• Check if the electrodes are properly placed and firmly attached.

• Ensure the patient remains still during the recording.

• Inspect lead wires for any damage or disconnection.

• Machine Malfunctions:

• Restart the ECG machine to reset any temporary issues.

• Consult the machine’s manual for troubleshooting steps.

• Contact technical support if the problem persists.

Maintenance and Calibration

To ensure the longevity and accuracy of the ECG machine, regular maintenance is necessary:

• Daily Checks:

• Inspect lead wires and electrodes for wear and tear.

• Ensure the ECG machine is clean and free from dust and dirt.

• Monthly Maintenance:

• Calibrate the ECG machine according to the manufacturer’s instructions.

• Replace consumables such as paper rolls and ink cartridges.

• Annual Servicing:

• Schedule professional servicing to ensure the ECG machine operates within optimal parameters.

Conclusion

Properly operating an ECG machine requires a systematic approach and attention to detail. From preparing the device and the patient to accurately placing electrodes and interpreting results, every step is essential for obtaining reliable ECG readings. Regular maintenance, calibration, and troubleshooting ensure that the machine functions optimally, contributing to the accurate diagnosis of heart conditions. By following the steps outlined in this guide, healthcare professionals can enhance their proficiency in using ECG machines, ultimately improving patient care and outcomes.
