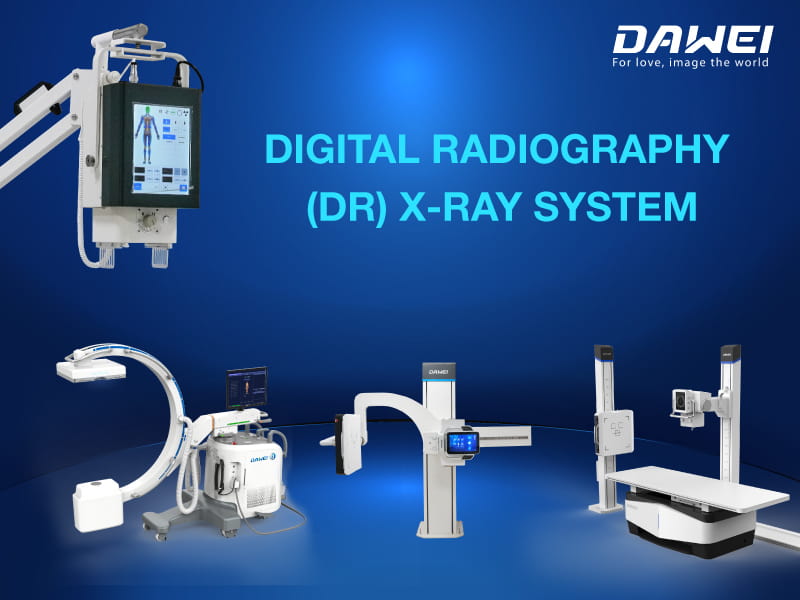

What is a Digital Radiography X-ray System?

A digital radiography (DR) X-ray system is a modern medical imaging technology that captures X-ray images digitally, replacing traditional film-based methods. This advancement enhances diagnostic accuracy, reduces patient radiation exposure, and streamlines clinical workflows. Digital radiography (DR) X-ray systems are integral to contemporary healthcare, offering various configurations to meet diverse clinical needs.

Table of Contents

1. Introduction to Digital Radiography

2. Components of a Digital Radiographic System

3. Types of Digital Radiographic Systems

• 3.1 Double-column DR X-ray Machine

• 3.2 Fixed Digital Radiology X-ray Machine

• 3.3 Portable Digital Radiography System

• 3.4 U-arm Digital X-ray Machine

• 3.5 C-arm X-ray Machine

4. Advantages of Digital Radiographic Systems

5. Comparison of DR System Types

6. Conclusion

Introduction to Digital Radiography

Digital radiography is a form of X-ray imaging where digital detectors are used to capture images, which are then displayed on a computer screen. Unlike traditional film-based radiography, digital systems offer immediate image availability, enhanced image quality, and the ability to manipulate images for better diagnostic interpretation. This technology has revolutionized medical imaging by improving efficiency and patient care.

Components of a Digital Radiography X-ray System

A typical digital radiography X-ray system comprises several key components:

• X-ray Tube: Generates X-rays by accelerating electrons and directing them onto a target material.

• Digital Detector: Captures the X-rays that pass through the patient and converts them into digital signals.

• Computer System: Processes the digital signals to create images, which can be viewed and analyzed.

• Display Monitor: Shows the processed images to healthcare professionals.

• Workstation: Allows for image manipulation, storage, and sharing.

These components work together to produce high-quality images that aid in accurate diagnosis.

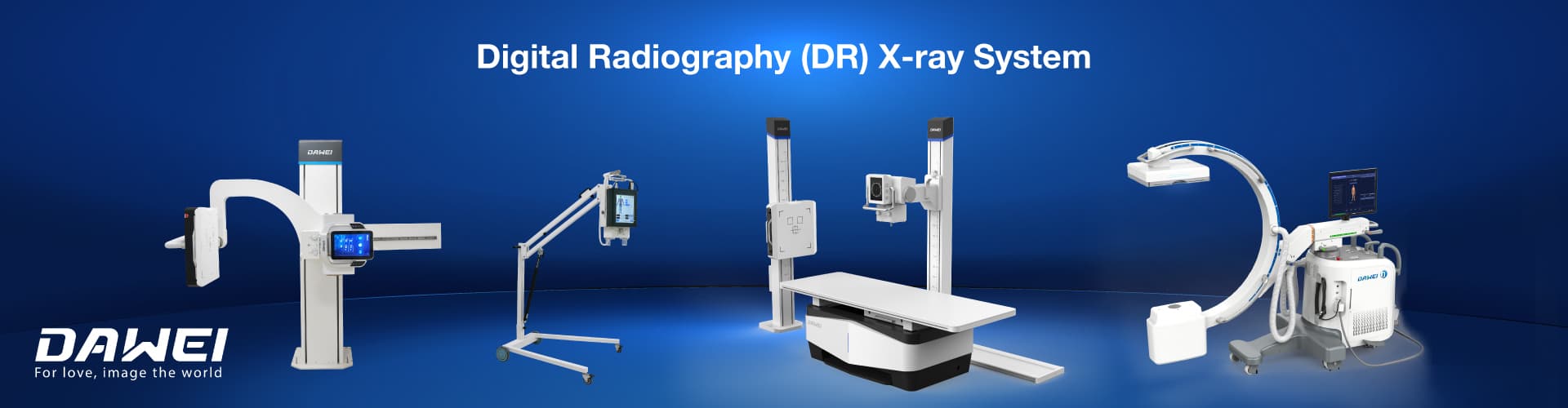

Types of Digital Radiographic Systems

Double-column DR X-ray Machine

The double-column DR X-ray machine features a dual-column design, providing enhanced stability and flexibility. This configuration allows for precise positioning of the X-ray tube and detector, accommodating various patient sizes and examination types. The dual-column setup also facilitates easier maintenance and servicing.

Portable Digital Radiography System

The portable digital radiography system is designed for mobility, allowing healthcare providers to perform imaging at the patient's location. These systems are particularly useful in emergencies, intensive care units, and home healthcare settings. Despite their compact size, portable systems deliver high-quality images and are equipped with wireless capabilities for easy data transfer.

U-arm Digital X-ray Machine

The U-arm digital X-ray machine features a unique U-shaped arm that supports the X-ray tube and detector. This design allows for a wide range of motion and positioning, making it ideal for imaging patients in various positions. U-arm systems are known for their space-saving design and versatility, making them suitable for clinics with limited space.

C-arm X-ray Machine

The C-arm X-ray machine allows easy positioning around the patient, enabling imaging from multiple angles without moving the patient, crucial in surgeries and trauma cases. Minimizes patient movement during imaging, reducing discomfort and risk of injury, particularly in trauma or critical care.

Advantages of Digital Radiographic Systems

DR systems offer numerous benefits over traditional film-based methods:

• Immediate Image Availability: Images are available instantly, reducing wait times for patients and clinicians.

• Enhanced Image Quality: Digital systems provide high-resolution images that can be adjusted for optimal viewing.

• Reduced Radiation Exposure: Advanced technology allows for lower radiation doses while maintaining image quality.

• Improved Workflow Efficiency: Digital images can be easily stored, retrieved, and shared, streamlining the diagnostic process.

• Cost Savings: Eliminates the need for film and chemical processing, reducing operational costs.

Comparison of DR System Types

Conclusion

Digital radiography X-ray systems have transformed medical imaging by providing faster, safer, and more efficient diagnostic tools. Whether in a high-volume hospital setting or a mobile clinic, these systems offer tailored solutions to meet diverse clinical needs. Understanding the different types of DR systems and their advantages is crucial for healthcare providers in selecting the appropriate equipment for their practice.
