Digital X-Ray Machine Buying Guide for Clinics

The transition from Computed Radiography (CR) to Digital Radiography (DR) marks a critical milestone for modern clinics. You face an important decision today. Purchasing a digital X-ray machine is a substantial capital investment that lasts 10 to 15 years. This choice directly impacts your diagnostic accuracy, daily patient throughput, and overall operational profitability. We designed this guide to help medical buyers, clinic owners, and radiology directors navigate the complex imaging market. We will show you how to shortlist the right equipment and implement it smoothly without major disruptions. By the end, you will understand exactly what specifications matter most for your specific clinical environment.

Key Takeaways

• Needs Dictate Configuration: Patient volume and physical room dimensions must drive the choice between floor-to-ceiling, U-Arm, or mobile systems.

• Detector Quality is Paramount: The flat panel detector (FPD) dictates image clarity and radiation dose; Cesium Iodide (CsI) is the clinical standard for dose-sensitive environments.

• Look Beyond Upfront Price: TCO — encompassing PACS integration, software licenses, and service contracts — is a critical factor in evaluating long-term ROI.

• Site Readiness Matters: Structural modifications and lead shielding requirements can delay implementation if not assessed early.

Assessing Clinical Requirements Before Buying a Digital X-Ray Machine

Patient Volume and Throughput

You must evaluate your daily patient volume before reviewing equipment specifications. Low-volume facilities, such as rural clinics and small urgent care centers, have different demands from high-volume orthopedic practices. A busy trauma center requires rapid image acquisition to maintain workflow. You should calculate your desired exams-per-hour target early in the planning phase. This metric directly dictates the required generator power (measured in kW) and the tube cooling capacities. High patient throughput demands faster cooling rates to prevent system lockouts during peak hours. Conversely, over-purchasing generator capacity for a low-volume clinic wastes capital.

Facility Space and Structural Constraints

Physical space often limits your hardware options. Standard radiography rooms usually require specific square footage to accommodate floating tables and wall stands safely. Small clinics often face tight footprint constraints. You must measure ceiling heights and assess floor loading capacities. Older buildings may not support the weight of heavy, floor-mounted pedestals. You should engage a structural engineer if you suspect weak flooring. Knowing these dimensions helps you eliminate incompatible systems immediately, saving you valuable procurement time.

Specialty-Specific Workflows

Different medical specialties demand specific imaging capabilities. Orthopedic and podiatry clinics perform numerous weight-bearing studies. These exams require low-height wall stands or specialized receptor trays. General practitioners mostly order standard chest and abdominal images, which require basic table and upright configurations. Pediatric clinics face unique challenges. When imaging children, you must prioritize low-dose digital radiography machine configurations to follow the ALARA (As Low As Reasonably Achievable) principle. Specialized pediatric software protocols automatically adjust exposure settings based on patient size.

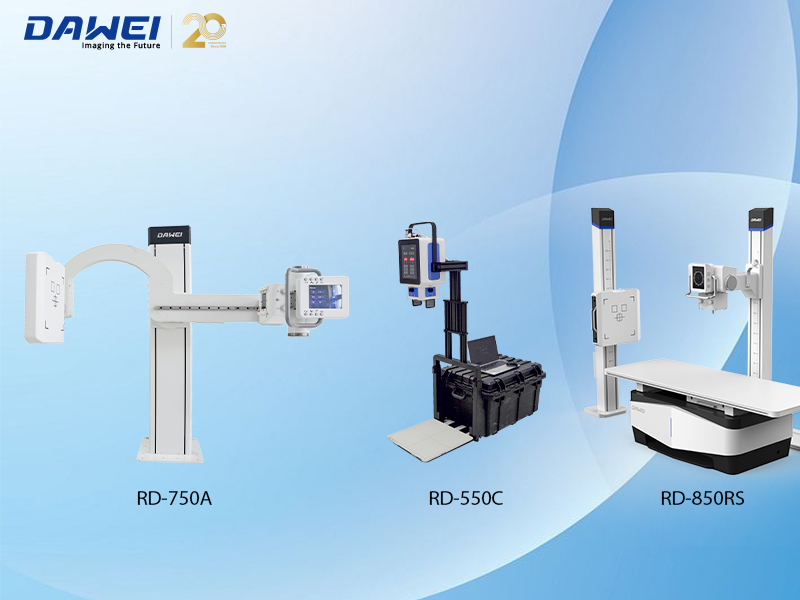

Types of DR X-Ray Systems: Choosing the Right Form Factor

Floor-to-Ceiling and Floor-Mounted Systems

Floor-to-ceiling DR systems provide exceptional stability. They are best suited for standard clinical rooms with reliable floor support and adequate ceiling height. These units offer versatile tracking capabilities, allowing technologists to align the tube and detector seamlessly.

Pros: They deliver high stability, excellent longevity, and accommodate almost all standard exams.
Cons: They require dedicated room space, involve longer installation times, and demand structural integrity from your facility floors.

Straight-arm and U-arm Systems

Straight-arm and U-arm systems typically feature coordinated tube-detector movement, often with motorized pan-tilt or arc-based positioning. They are best for clinics facing tight space constraints. These compact footprint units do not require a separate wall stand and table setup.

Pros: They are cost-effective, save significant floor space, and install quickly.
Cons: The single-axis design can limit specific cross-table projections or make imaging patients on stretchers difficult.

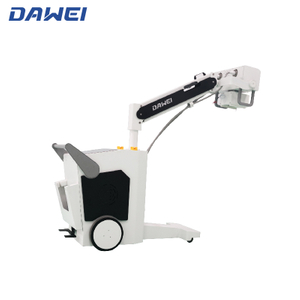

Mobile Digital X-Ray Machines

Facilities requiring point-of-care imaging often deploy mobile units. They are best for temporary clinical setups, multi-room sharing, or environments where patients cannot move easily. A mobile DR X-ray system brings the imaging directly to the bedside.

Pros: They offer ultimate flexibility and eliminate patient transport issues.
Cons: They typically feature lower generator outputs compared to fixed room systems, which can limit penetration for thicker anatomical regions.

The comparison chart below outlines the primary differences between these form factors.

Key Evaluation Criteria for DR X-Ray Systems

Flat Panel Detectors (FPD) Technology

The flat panel detector serves as the digital film of your new system. You must choose the right scintillator material carefully. The market offers two primary options: Cesium Iodide (CsI) and Gadolinium Oxysulfide (Gd₂O₂S), often called GOS. We strongly recommend CsI for medical applications. CsI structured crystals funnel light more efficiently, yielding superior image quality at significantly lower radiation doses. GOS panels cost less but require higher exposure levels to achieve similar clarity.

You also need to decide between tethered and wireless detectors. Tethered panels draw power through a physical cable. They eliminate battery management tasks but introduce cable degradation risks and limit technologist movement. Wireless panels speed up workflow remarkably. However, they introduce battery charging routines and increase the risk of accidental drops.

Generator Power (High-Frequency)

Generator power determines the x-ray beam's penetration capability. You will evaluate units based on their kilowatt (kW) ratings. Standard clinics typically choose generators ranging from 32kW to 50kW.

1. 32kW Generators: Suitable for general imaging, urgent care, and extremities.

2. 40kW Generators: A versatile middle ground for varied patient demographics.

3. 50kW to 80kW Generators: Essential for high-volume centers, bariatric patients, and specialized cross-table work.

Higher kW ratings provide better penetration for larger patients. They also enable faster exposure times. Rapid exposures effectively reduce motion blur, ensuring crisp images even if the patient moves slightly.

Software Capabilities and PACS/DICOM Integration

Hardware represents only half of the equation. Software capabilities govern how efficiently your staff operates. Your new system must offer native integration with your existing Clinical Information Systems (CIS) and Picture Archiving and Communication Systems (PACS). Strict DICOM conformance ensures images transmit smoothly across networks.

Advanced image processing algorithms provide immense clinical value. Look for systems featuring automatic scatter correction, which reduces the need for physical grids. Auto-stitching capabilities are crucial for orthopedic clinics needing full-spine or long-leg studies. These software tools automate tedious manual processes and reduce repeat exposures.

Budgeting and Financial Returns for Clinics

Upfront Capital Expenditure (CapEx)

Understanding baseline price ranges helps you establish realistic budgets. Economy systems generally feature lower kW generators and GOS detectors. Premium systems include high-frequency 50kW+ generators, CsI wireless panels, and advanced software suites.

Many budget-conscious small clinics explore certified refurbished equipment. Refurbished units can drastically lower your initial CapEx. However, you must apply strict vetting procedures. Ensure the vendor supplies a robust warranty and guarantees OEM parts availability for at least five years. Buying an obsolete system to save money upfront often leads to expensive downtime later.

Hidden and Ongoing Costs (OpEx)

Operating expenses impact your budget long after the initial purchase. You must budget for Service Level Agreements (SLAs) and preventative maintenance contracts. If you select wireless detectors, you should absolutely invest in drop-coverage insurance. A single dropped panel can cost thousands of dollars to replace.

Room preparation represents another major hidden cost. You might need to upgrade electrical panels to support a 40kW generator. Local regulations often require specific lead shielding modifications in the walls. Floor reinforcements might be necessary for heavy pedestals. Identify these requirements early to prevent budget overruns.

Calculating ROI

Transitioning from CR to DR transforms clinical efficiency. DR eliminates manual cassette processing. Technologists view images on the acquisition monitor within seconds of the exposure. This time-saving factor increases patient throughput by 30% to 50%. You can schedule more patients per day without adding staff. Additionally, you gain billing efficiencies through faster report turnarounds. You also eliminate ongoing costs associated with CR cassettes, chemical storage, and film printing.

Conclusion

Choosing the right equipment requires a careful balance between your immediate clinical needs and long-term operational value. You must evaluate patient throughput, physical space, detector technology, and generator power simultaneously. We recommend establishing an internal procurement committee before requesting any vendor quotes. This committee should include your lead technologist, IT director, and a financial decision-maker. This collaborative approach ensures you address clinical workflows, network security, and budget constraints properly. As a practical next step, reach out to shortlisted vendors to request localized site-planning consultations. Ask them to provide standard DICOM conformance statements. These actions will lay a solid foundation for a successful, profitable equipment upgrade.

FAQ

Q: How long does a digital X-ray machine typically last?

A: A high-quality system typically boasts a physical lifespan of 10 to 15 years. However, the accompanying software and PC hardware follow a much shorter obsolescence cycle. You should plan to upgrade workstations and software licenses every 5 to 7 years to maintain peak processing speeds and network security.

Q: Can we upgrade our existing analog/CR system to digital without buying a full new machine?

A: Yes. You can utilize DR Retrofit kits. These kits involve swapping your old bucky and cassettes for a new digital flat panel detector while keeping your existing table and generator. It costs significantly less than a full replacement, though you may sacrifice some advanced automated features.

Q: What is the standard warranty on a flat panel detector?

A: Manufacturers generally offer standard warranties ranging from 1 to 5 years, covering internal defects and software glitches. However, standard warranties rarely cover physical damage. If you purchase wireless panels, you must secure supplemental "drop protection" insurance to avoid massive replacement costs.

Q: What electrical requirements are needed for a standard clinic installation?

A: Electrical requirements depend heavily on the generator's power rating. Low-power systems (under 32kW) can often run on standard single-phase power. However, higher-output generators (40kW to 80kW) typically require dedicated three-phase electrical lines to deliver consistent, high-amperage current during exposures.
