What Is The C-arm Digital Radiography Machine?

Introduction

A C-arm digital radiography machine captures real-time images during procedures due to its flexible C-shaped arm.  This machine is widely used in orthopedic, urology, and cardiac surgeries.

In this article, we will discuss how the C-arm works, its features, and its applications. You will also learn how it improves precision and patient outcomes.



Understanding the C-arm Digital Radiography Machine

What is a C-arm Digital Radiography Machine?

A C-arm is a portable, fluoroscopic X-ray machine. The name "C-arm" comes from its distinctive C-shaped arm, which connects the X-ray source at one end to the detector at the other, enabling imaging from various angles during surgical procedures. Unlike traditional X-ray machines that only capture static images, the C-arm provides continuous, dynamic X-ray images. This real-time imaging is crucial for guiding surgeons and physicians during complex operations, ensuring better precision and decision-making.

How Does a C-arm Work?

The C-arm machine is made up of several key components that work together to provide high-quality imaging:

● X-ray Generator: The X-ray generator emits X-rays that pass through the patient’s body. These X-rays are then captured by the detector on the opposite side.

● Image Intensifier/Flat-Panel Detector: The X-rays are converted into visible images by the image intensifier or the flat-panel detector, depending on the system. This transformation allows the images to be displayed on a monitor for review.

● C-shaped Arm: The C-arm design supports the X-ray tube and detector, allowing them to move in multiple directions. This flexibility enables the capture of images from various angles, providing better visibility of the area being treated.

● Workstation: The workstation is the control center of the C-arm system. It manages the settings, processes the captured images, and displays them on a monitor for the surgeon or physician to review.

The flexibility of the C-arm machine allows it to be used in various medical settings, including operating rooms, diagnostic imaging areas, and during pain management procedures. Its real-time imaging capability makes it an indispensable tool in a variety of medical specialties.

C-arm vs Traditional X-ray Systems

While both C-arm and traditional X-ray systems use X-ray technology, they differ significantly in their functionality and applications.

● Traditional X-ray Systems: Primarily used for diagnostic purposes, these machines capture static images, which are useful for conditions like fractures or infections. The process involves a single X-ray shot, after which the image is developed, offering a snapshot of the body’s internal structures.

● C-arm Systems: Unlike traditional systems, C-arm machines provide continuous, dynamic imaging, making them ideal for surgeries and interventional procedures. Surgeons can view real-time X-ray images, enabling them to make precise adjustments during procedures. This ability to visualize ongoing changes in the body during operations sets the C-arm apart from traditional machines.

The C-arm's mobility and ability to provide real-time, high-quality imaging make it the preferred choice for fast-paced environments like operating rooms, where flexibility and precision are crucial.



Feature	C-arm Digital Radiography	Traditional X-ray Systems
Imaging Type	Real-time, continuous imaging	Static images
Mobility	Portable and flexible	Fixed in one location
Usage	Surgical and interventional procedures	Diagnostic imaging only
Image Quality	High resolution, real-time clarity	Lower resolution, static images
Application Areas	Orthopedics, cardiac, and pain management	General diagnostics, standard exams



Key Features of C-arm Digital Radiography Machines

Real-Time Imaging Capabilities

The C-arm provides continuous fluoroscopic imaging, allowing real-time viewing of a patient’s anatomy. This feature is crucial during surgical procedures where precise imaging is needed to ensure accurate placement of surgical tools or implants. With real-time imaging, surgeons can adjust their approach instantly, improving accuracy and reducing the risk of errors.

High-Resolution Imaging

C-arm machines provide high-resolution images that are essential for identifying details during complex surgeries. The high image quality ensures that surgeons can clearly visualize bone structures, fractures, and the positioning of implants, all in real time. This level of clarity helps in making quick, informed decisions during procedures.

Fluoroscopy Technology in C-arm

Fluoroscopy is a technique that provides continuous X-ray images, enabling doctors to observe real-time movements within the body. C-arm machines leverage this technology, allowing for dynamic visualization of internal structures, such as bones and blood vessels, during surgeries. This is especially useful for orthopedic, vascular, and cardiac procedures.

Mobile and Flexible Design

One of the key features of the C-arm is its mobility. Unlike traditional X-ray machines, which are fixed in one location, the C-arm is portable, allowing it to be moved easily around the operating room. Its flexible design lets surgeons adjust the machine’s position quickly, capturing images from various angles as needed. This flexibility ensures that surgeons can capture the best possible images, even in tight or awkward spaces.



Applications of C-arm Digital Radiography Machines

Orthopedic Procedures

C-arm machines are frequently used in orthopedic surgeries, such as joint replacements, spinal surgeries, and fracture fixation. During these procedures, real-time imaging allows surgeons to monitor the positioning of implants and ensure the bones are properly aligned. The C-arm's ability to provide continuous imaging makes it an indispensable tool for orthopedic surgeons.

Cardiac and Vascular Procedures

C-arm systems are also commonly used in cardiac and vascular procedures, such as angiograms and stent placements. Real-time imaging helps guide the placement of stents, catheters, and other devices within the arteries and veins, ensuring that they are positioned correctly. The C-arm's ability to provide detailed, live images of blood vessels is critical for the success of these procedures.

Pain Management and Other Interventional Procedures

Pain management procedures, such as spinal injections and nerve blocks, benefit from the precision offered by C-arm imaging. The C-arm allows for accurate needle placement, ensuring that treatments are delivered to the correct location. Its ability to provide real-time feedback reduces the risk of complications and improves patient outcomes.

Urology and Gastroenterology

C-arm machines are also used in urological and gastroenterological procedures, such as kidney stone removal or bowel surgeries. The ability to visualize the organs and tissues in real time ensures that these procedures are done with minimal disruption to surrounding structures, improving the effectiveness and safety of the treatment.

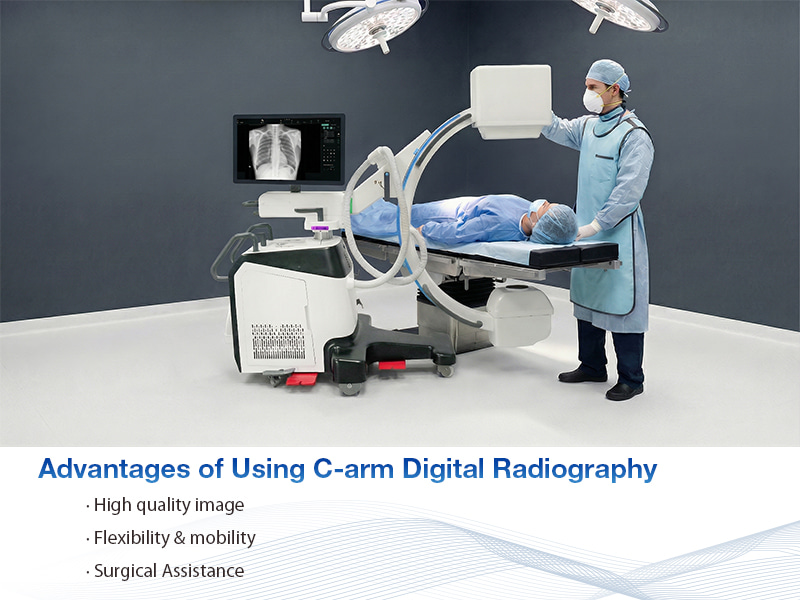

Advantages of Using C-arm Digital Radiography

Enhanced Surgical Precision

The real-time imaging provided by C-arm machines allows surgeons to make more precise decisions during procedures. The ability to adjust the surgical approach based on live feedback leads to improved patient outcomes and fewer complications.

Reduced Radiation Exposure

Modern C-arm systems are designed to optimize radiation doses, reducing exposure to both patients and medical staff. These systems allow for shorter exposure times, further minimizing radiation risks without compromising image quality.

Increased Efficiency in Surgical Procedures

With its ability to provide instant imaging, the C-arm enhances the efficiency of surgical procedures. Surgeons can visualize the internal anatomy quickly and make real-time adjustments, reducing the overall time spent in surgery and improving workflow in the operating room.

Flexibility and Mobility

The C-arm's portability and flexibility are among its greatest advantages. Its compact design allows it to be used in a variety of settings, from operating rooms to interventional suites. This mobility also allows for imaging at multiple angles, providing a more comprehensive view of the patient's anatomy.



Benefit	Description
Enhanced Surgical Precision	Real-time imaging helps improve accuracy during surgery.
Reduced Radiation Exposure	Modern systems use optimized settings to minimize radiation.
Increased Efficiency in Procedures	Faster imaging speeds up surgical procedures and improves workflow.
Flexibility and Mobility	C-arm's portable design allows for greater access to patient areas.



Choosing the Right C-arm Digital Radiography Machine

Full-Size vs Compact C-arm Machines

When selecting a C-arm machine, one of the key decisions is whether to choose a full-size or compact model. Full-size C-arms offer more powerful generators and larger image intensifiers, making them ideal for high-demand procedures. Compact C-arms, on the other hand, are smaller and more affordable, making them ideal for smaller hospitals or outpatient clinics that perform less complex procedures.

Key Factors to Consider

When choosing a C-arm system, consider factors such as the type of procedures you will be performing, space limitations, and the number of patients you will be imaging. Additionally, it is important to consider the machine's generator power, image intensifier size, and the flexibility of its arm for positioning.

Cost Considerations and Budgeting

C-arm machines can be expensive, especially the high-end models with advanced features. It’s essential to balance the cost of the machine with its capabilities and how often it will be used. Compact models are more budget-friendly but may have fewer features and less flexibility.



Troubleshooting Common Issues in C-arm Machines

Image Quality Problems

If the image quality is poor, check the exposure settings and ensure that the C-arm is properly positioned. Adjusting the kVp and mAs settings can often resolve issues with image clarity.

Connectivity and Software Issues

Ensure that the software is up to date and that the C-arm is properly connected to the workstation. Restarting the system may resolve minor connectivity problems.

Mechanical or Power Failures

If the C-arm is not functioning properly, check for loose connections or issues with the power supply. Consult the user manual for troubleshooting tips or contact technical support if necessary.



Issue	Possible Cause	Solution
Poor Image Quality	Incorrect exposure settings	Adjust kVp and mAs settings
Connectivity Issues	Wireless communication failure	Check Wi-Fi connection and reset
Image Transfer Delay	Slow wireless data transfer	Ensure stable network connection
System Malfunction	Software or hardware malfunction	Restart the system and check cables



Safety Considerations in C-arm Digital Radiography

Radiation Safety Protocols

Follow standard radiation safety protocols to minimize exposure for both patients and healthcare providers. This includes wearing protective gear, using the lowest possible radiation dose, and limiting exposure time.

Proper Handling and Maintenance

To ensure the longevity and safety of the C-arm, handle it with care and perform regular maintenance checks. Keep the equipment clean and properly calibrated to ensure optimal performance.

Regular Calibration and Inspections

Regular calibration and inspection are crucial for maintaining image quality and the proper functioning of the C-arm. Schedule routine maintenance to prevent equipment malfunctions.



Conclusion

C-arm digital radiography machines are crucial in modern medical imaging, offering real-time, high-resolution imaging for various procedures. Their flexibility, mobility, and precision make them invaluable in fields like orthopedics and cardiac interventions. Understanding how to operate and maintain C-arm systems ensures optimal performance and patient outcomes. As technology advances, C-arm machines will continue to enhance surgical precision and patient care. Products from Dawei Medical provide reliable and advanced solutions that improve medical imaging and patient outcomes.



FAQ

Q: What is a C-arm digital radiography machine?

A: A C-arm digital radiography machine is a portable X-ray system that provides real-time imaging, commonly used in surgeries and interventional procedures.

Q: How does a C-arm digital radiography machine work?

A: The C-arm uses a C-shaped arm to position the X-ray tube and detector. It captures real-time images, helping guide surgeons during procedures.

Q: What are the benefits of using a C-arm digital radiography machine?

A: C-arm systems offer high-resolution images, flexibility, and mobility, enhancing surgical precision and reducing procedure time.

Q: Why should I choose a C-arm over traditional X-ray machines?

A: C-arm machines provide real-time, dynamic imaging, offering more flexibility and precision than traditional X-ray machines, especially during complex surgeries.
