RD-550
The RD-550 is a small, lightweight medical imaging device manufactured by Dawei Medical that produces X-ray images of the human body's internal structures. Unlike traditional large, fixed X-ray machines, its compact design makes it easy to move and suitable for use in a variety of settings.
库存： 0
Inquiry
Product Description

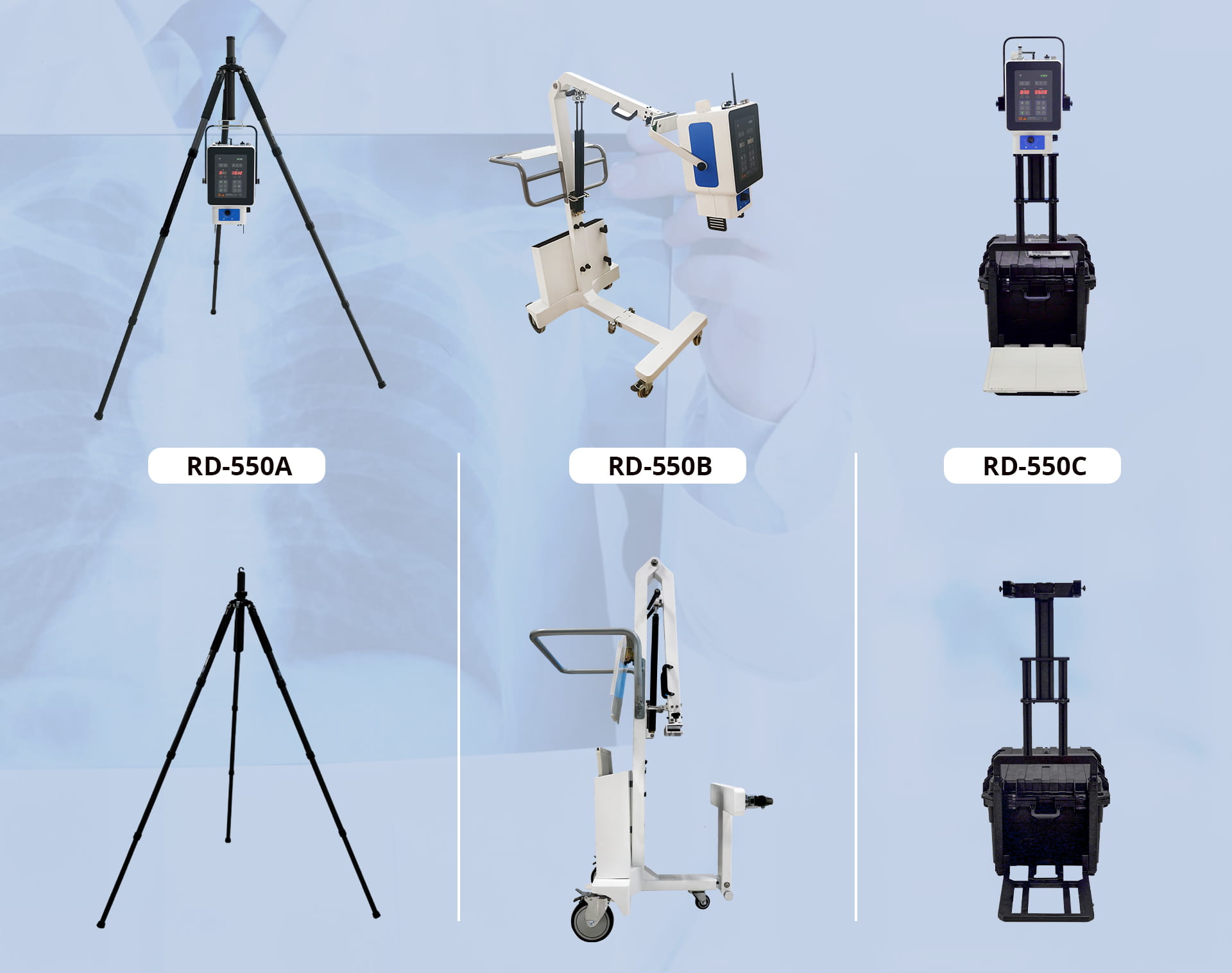

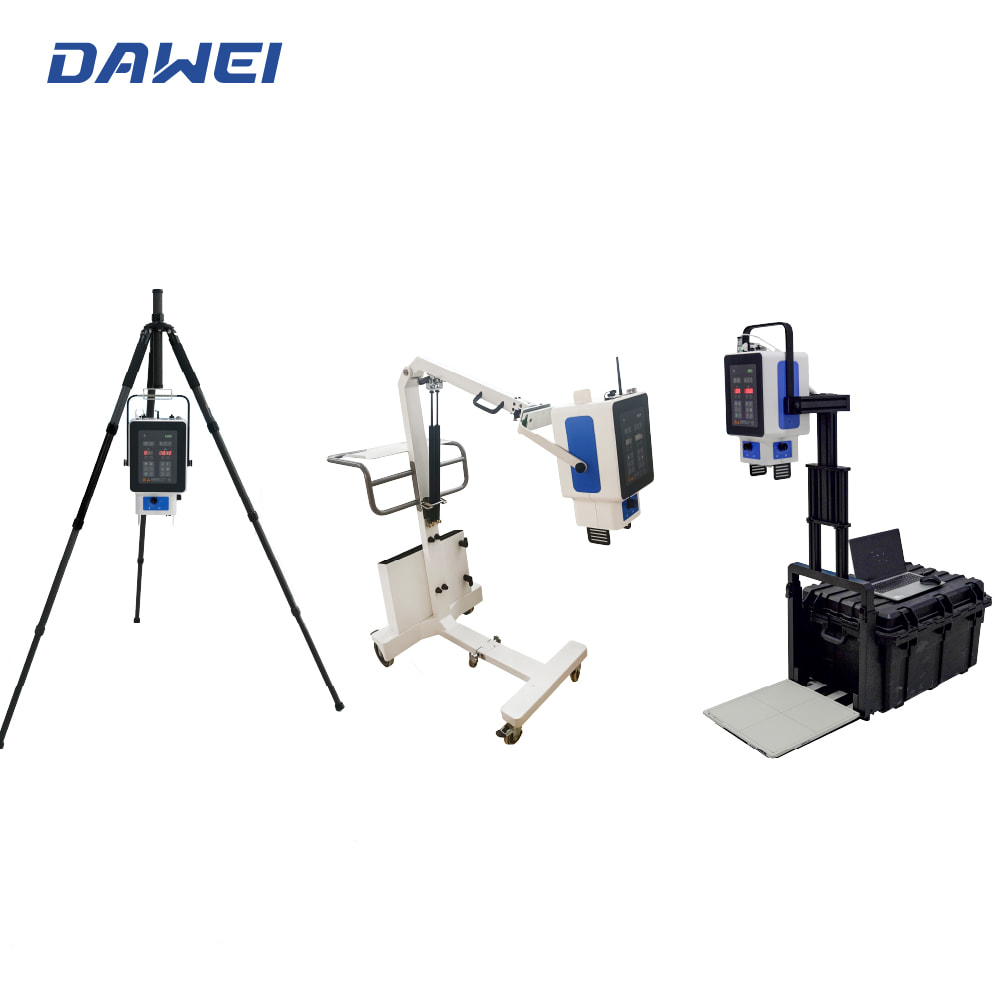

RD-550A, RD-550B and RD-550C are three models of mobile digital radiography systems of DAWEI Medical .
They share the same high-performance generator, and the main difference lies in the stand design.
This differentiated rack configuration is designed to flexibly adapt to diverse clinical environments and operational needs..

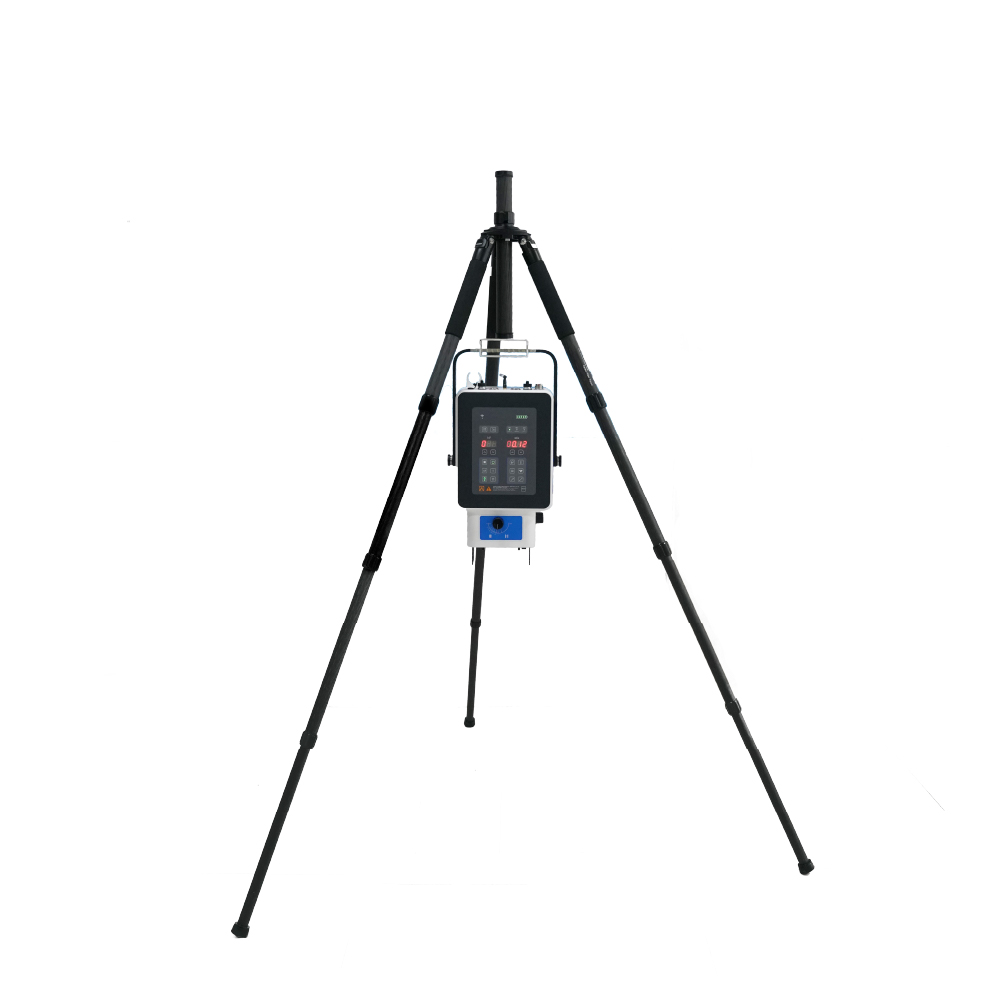

The tripod is made of aluminum alloy and carbon fiber, which is more sturdy and durable. It can be folded and stored, making it easy to put into a backpack or suitcase.

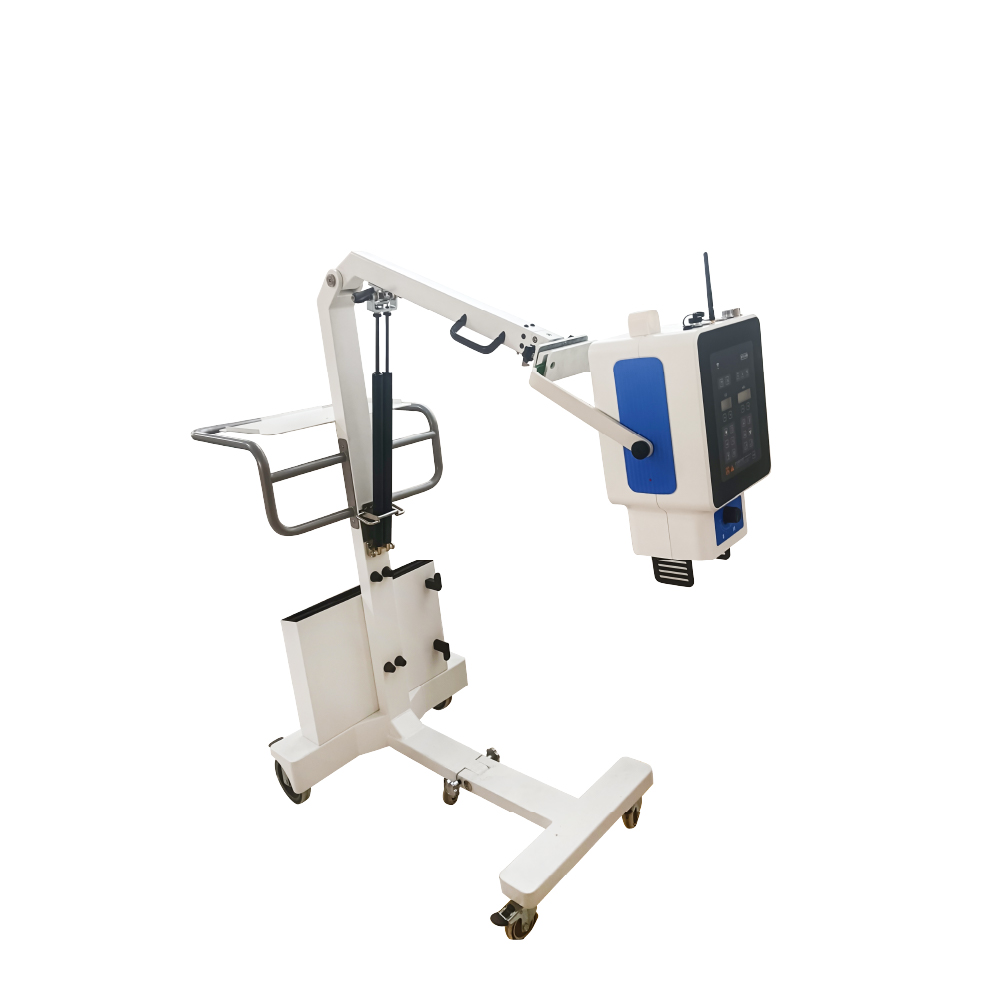

Equipped with universal wheels and wheels with brakes, it is convenient to move and fix on different surfaces. It is foldable for easy storage and transportation.

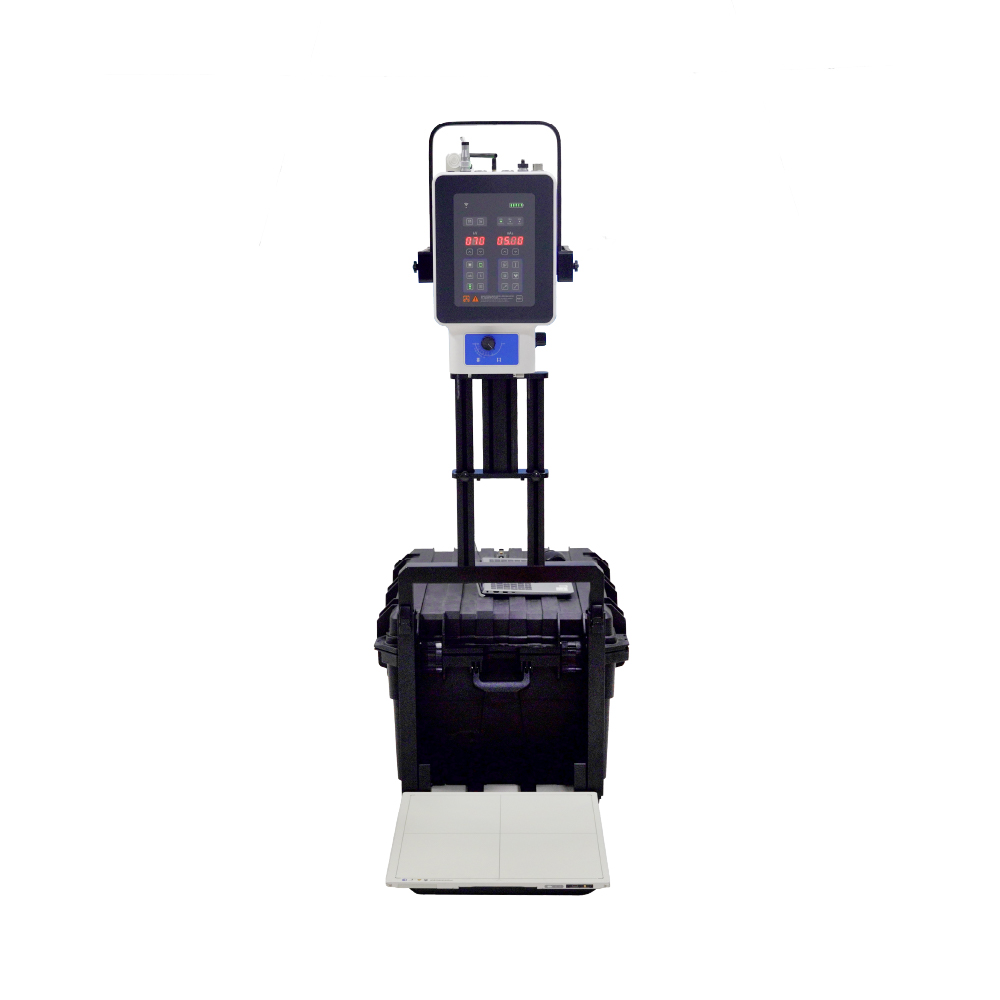

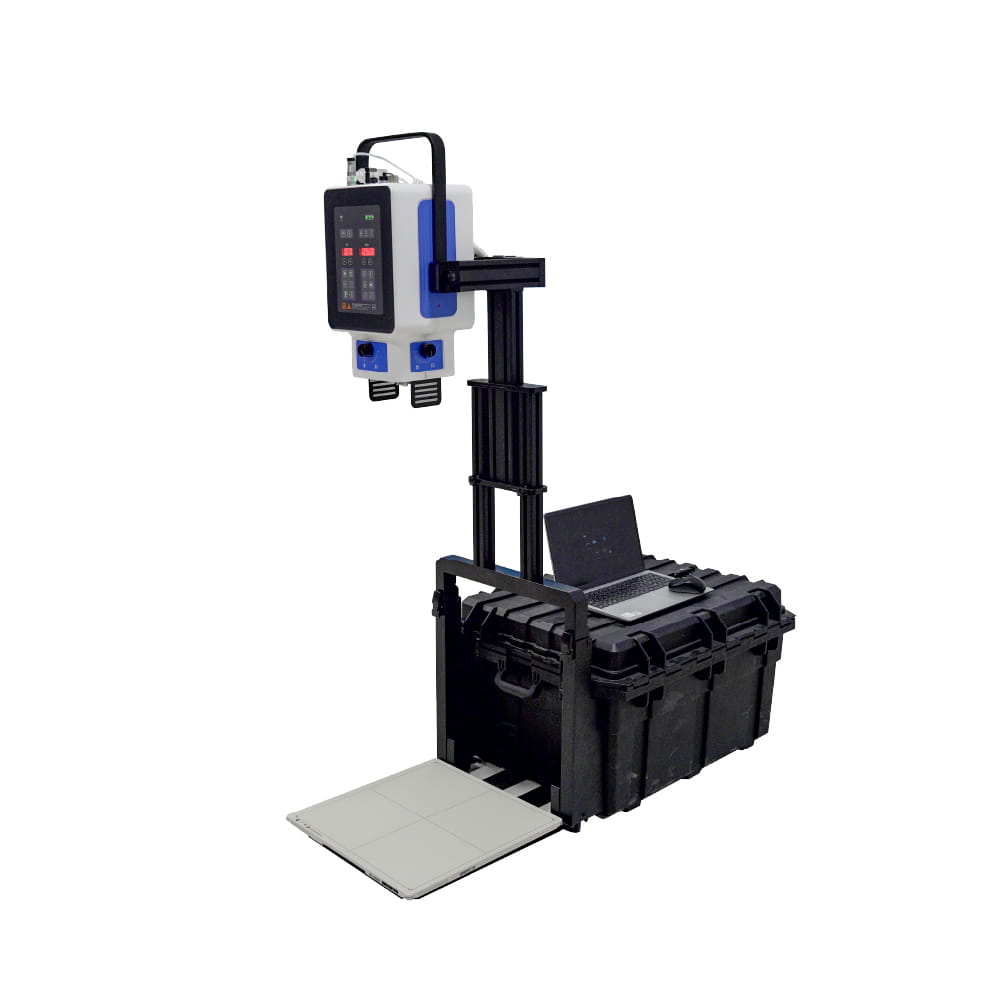

The stand and the packaging box are integrated, which not only protects the equipment but also facilitates transportation. After opening the packaging box, the equipment can be used directly without additional installation.
Parameters
| X-ray generator | ||
| Output power | 5.6kW | |
| Input power voltage | AC100-240V, ±10% | |
| Input power frequency | 50Hz/60Hz, ±1Hz | |
| Battery power supply | DC48.1V, 6000 mAh | |
| Inverter frequency | 20kHz±2kHz | |
| Exposure kV range | 40kV-125kV | |
| Exposure mA range | 5mA~100mA | |
| Exposure ms range | 2ms~10000ms | |
| Exposure mAs range | 0.1mAs~320mAs | |
| Optional exposure technology | kV-mAs; kV-mA-ms | |
| X-ray tube | ||
| Nominal X-ray tube voltage | 125kV | |
| X-ray focal point value | 0.6mm (small focal point) 1.8mm (large focal point) | |
Features
High-resolution imaging
Using advanced imaging technology, it can provide high-resolution X-ray images to ensure the accuracy of diagnosis
Wireless connection
Supports wireless data transmission, which can directly transmit images to computers or mobile devices, making it convenient for doctors to conduct remote diagnosis and consultation.
Long standby time
Built-in high-capacity battery supports long-term operation and is suitable for use in situations where there is no power supply.
Intelligent software support
Equipped with intelligent image processing software, it can automatically optimize image quality and provide a variety of image processing tools to help doctors make more accurate diagnoses.
