What Is the Difference Between DR and CR Systems?

In the realm of medical imaging, particularly radiography, the transition from traditional film-based systems to digital technologies has revolutionized diagnostics. Among the digital modalities, Digital Radiography (DR) and Computed Radiography (CR) stand out as the primary alternatives to conventional film radiography. While both systems aim to digitize X-ray images, they differ significantly in technology, workflow, image quality, radiation dose, cost, and maintenance. Understanding these differences is crucial for healthcare facilities when choosing the appropriate imaging system.

Understanding Digital Radiography (DR)

Digital Radiography (DR) is an advanced form of X-ray imaging that utilizes digital detectors to capture and convert X-ray energy directly into digital images. This process eliminates the need for intermediate steps like film processing or cassette handling.

Key Features of DR Systems

Image Acquisition: DR systems employ flat-panel detectors, which can be either direct or indirect. Direct detectors, utilizing materials such as amorphous selenium, convert X-rays directly into electrical charges, whereas indirect detectors employ scintillators like cesium iodide to convert X-rays into light, which is subsequently converted into electrical charges.

Image Quality: DR systems typically offer superior image quality with higher spatial resolution and a broader dynamic range compared to CR systems. This results in clearer images with better contrast, aiding in more accurate diagnostics.

Workflow Efficiency: Images in DR systems are available almost instantaneously, often within seconds after exposure. This rapid image acquisition streamlines workflow, reduces patient wait times, and enhances overall throughput in busy clinical settings.

Radiation Dose: Due to their higher detective quantum efficiency (DQE), DR systems often require lower radiation doses to produce high-quality images, thereby reducing patient exposure.

Cost and Maintenance: While DR systems have a higher initial cost, they generally incur lower long-term maintenance expenses. The absence of moving parts and the reduced need for consumables contribute to cost savings over time.

Understanding Computed Radiography (CR)

Computed Radiography (CR) is a digital imaging technique that uses photostimulable phosphor (PSP) plates to capture X-ray images. These plates store the latent image, which is later read and digitized by a separate scanner.

Key Features of CR Systems

Image Acquisition: CR systems require the use of cassettes containing PSP plates, which are exposed to X-rays. After exposure, these cassettes are manually transported to a reader where the latent image is scanned and converted into a digital format.

Image Quality: While CR systems provide acceptable image quality, they generally offer lower spatial resolution and dynamic range compared to DR systems. This can result in less detailed images, potentially affecting diagnostic accuracy.

Workflow Efficiency: The need to manually handle and process cassettes in CR systems introduces additional steps, leading to longer image acquisition times and potentially slower workflow, especially in high-volume settings.

Radiation Dose: CR systems typically require higher radiation doses to achieve image quality comparable to DR systems, increasing patient exposure.

Cost and Maintenance: CR systems have a lower initial cost, making them more accessible for facilities with budget constraints. However, they may incur higher long-term costs due to the need for regular maintenance and replacement of PSP plates.

Comparative Analysis: DR vs. CR

To provide a clearer understanding, the following table summarizes the key differences between DR and CR systems:

The comparison table shows that DR systems offer faster image acquisition, better image quality, and lower radiation doses, making them ideal for high-volume settings, though they come with a higher initial cost. CR systems are more affordable and portable but have slower workflows, lower image quality, and higher radiation doses. DR is preferred for efficiency and precision, while CR is suitable for budget-conscious or mobile setups.

Choosing the Right System for Your Facility

Selecting between DR and CR systems depends on various factors, including budget, patient volume, space constraints, and specific clinical needs.

High-Volume Facilities: For hospitals and imaging centers with high patient throughput, DR systems are often preferred due to their rapid image acquisition, superior image quality, and efficient workflow.

Budget-Conscious Settings: Smaller clinics or facilities with limited budgets may opt for CR systems, benefiting from their lower initial cost while understanding the trade-offs in image quality and workflow efficiency. But DR has long-term economic efficiency.

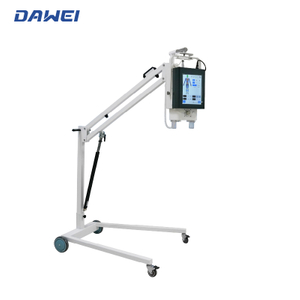

Mobile Applications: For settings requiring mobility, such as emergency departments or rural clinics, CR systems offer greater portability. But for bedside, and Operating Room, etc., the DR system has various models to suit the situation, such as C-arm machine, UC arm Machine, Mobile X-ray machine.

Conclusion

Both Digital Radiography (DR) and Computed Radiography (CR) have significantly advanced the field of medical imaging, each offering unique advantages and limitations. The choice between DR and CR should be guided by the specific needs and constraints of the healthcare facility, balancing factors like cost, image quality, workflow efficiency, and patient safety. As technology continues to evolve, the trend is moving towards DR systems, driven by their superior performance and integration capabilities. However, CR systems remain a viable option for many, especially where budget and portability are paramount considerations.

Understanding these differences ensures that healthcare providers can make informed decisions, ultimately leading to improved patient care and optimized operational efficiency.
